CNC AC 4 Pole MCCB 63A to 800A Molded Case Circuit Breaker YCM7 | Durable Electrical Protection

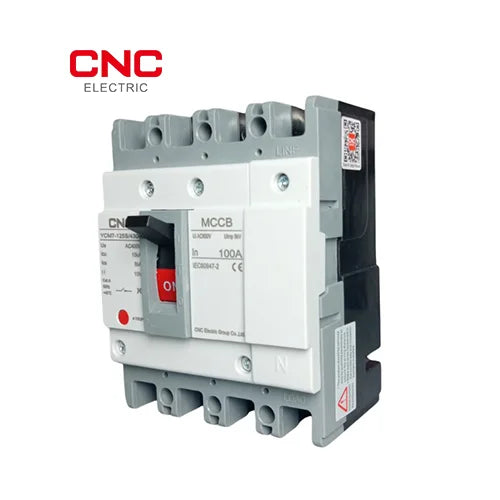

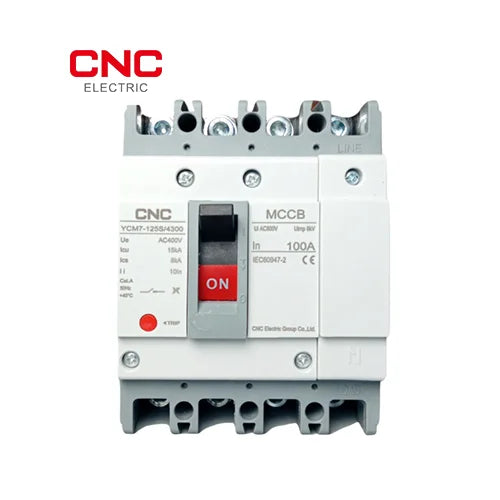

CNC YCM7 AC 4 Pole MCCB (63A to 800A)

The CNC Electric YCM7 4 Pole MCCB protects 3-phase + Neutral power systems from overload and short circuits. All four poles (L1, L2, L3 and N) trip together, so the Neutral is fully isolated as well. That makes it a strong choice for installations with unbalanced loads, generators, and solar inverter systems where Neutral isolation matters.

Key Features

• Series: YCM7 (100A model shown: YCM7-125S/4300)
• Poles: 4 Pole (3P+N)
• Current Options: 63A, 100A, 125A, 160A, 200A, 250A, 400A, 630A, 800A
• Rated Voltage: AC 400V
• Standard: IEC 60947-2, CE marked
• Clear ON/OFF handle: with a red ON indicator window
• Push-to-trip button: for quick mechanical testing
• Heavy-duty terminals with phase barriers for safe cable connection
• Rugged molded case built for industrial use

Applications

• Main incoming breaker for commercial and industrial buildings
• Generator and changeover panels needing Neutral isolation
• 3-phase solar inverter AC main panels
• Distribution boards with unbalanced loads

Choosing the Right Rating

• 63A to 250A: commercial buildings and sub-panels
• 400A to 800A: large buildings and industrial main incomers

Frame size, breaking capacity, and dimensions vary by ampere rating. Contact Golden Sun Solar to choose the right MCCB.
