CNC AC Breaker 1P+N MCB 10A-40A | Compact AC Circuit Breaker YCB9N-40 230V

CNC AC Breaker 1P+N: Compact Protection for Home Circuits

Protect your home's AC circuits with the CNC Electric YCB9N-40 AC Breaker. This compact 1P+N MCB cuts both Live and Neutral when overload or a short circuit occurs, and it fits in the width of a single module. You can install more circuits in the same DB box without giving up safety.

Specifications

• Model: YCB9N-40
• Type: AC Miniature Circuit Breaker, 1P+N
• Current Range: 10A to 40A
• Voltage: 230V~ AC, 50Hz
• Breaking Capacity: 6000A (6kA)
• Tripping Curve: C curve
• Standard: IEC 60898-1, CE marked

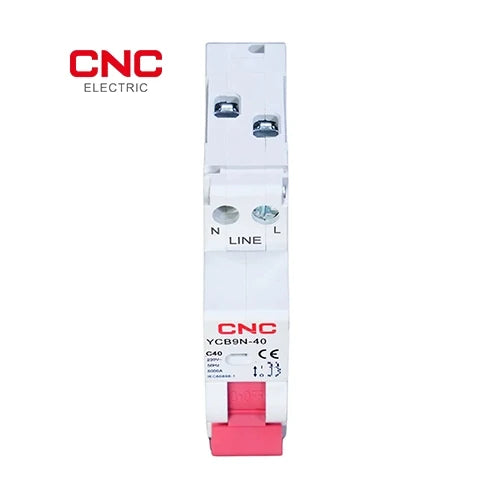

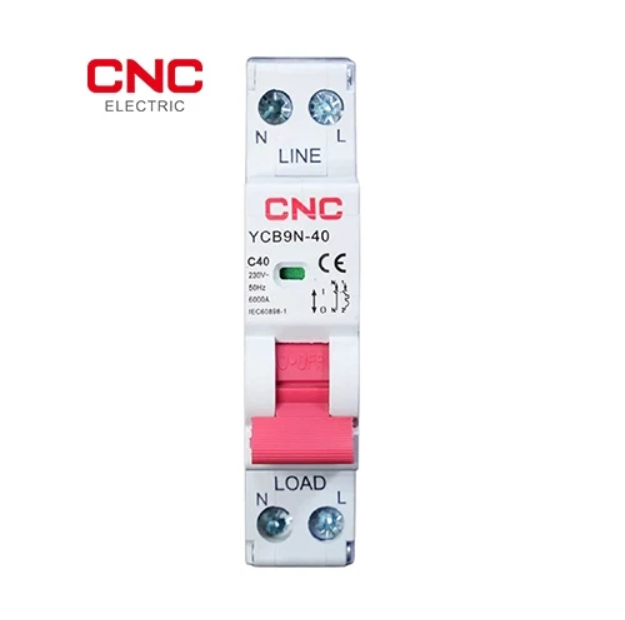

• Terminals: LINE (N, L) on top and LOAD (N, L) at the bottom
• Indicator: a green ON/OFF contact window
• Mounting: 35mm DIN rail

Where to Use It

• Lights, sockets, fans, and appliance circuits
• AC units, fridges, and geyser circuits (choose a suitable ampere rating)
• Compact home and office DB boards
• Single-phase solar inverter AC output

Benefits

• Double safety: Neutral is switched along with Live
• Saves space compared with a full 2 pole breaker
• Easy to wire thanks to clearly labeled terminals
• Trusted CNC Electric quality

Not sure which ampere to choose? Contact Golden Sun Solar for help.
