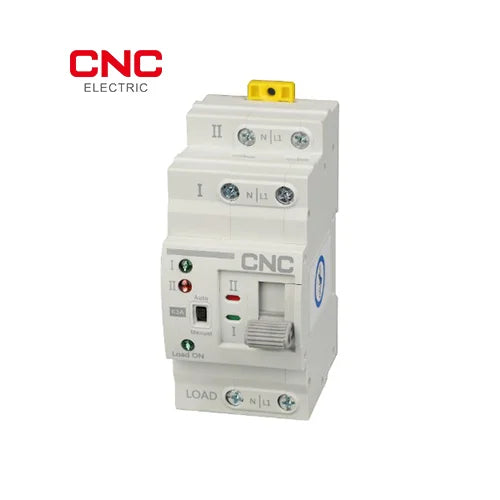

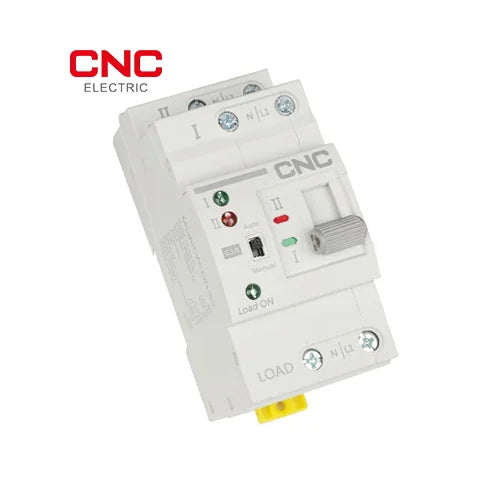

CNC Electric YCQR 2 Pole 63A Automatic Transfer Switch with Under/Over Voltage Protection

Automatic Source Transfer with Voltage Protection

The CNC Electric YCQR 2 Pole 63A Automatic Transfer Switch combines automatic main-to-backup source changeover with under-voltage and over-voltage protection. It is an option for compatible single-phase home, shop and office backup panels, subject to electrical design and source compatibility.

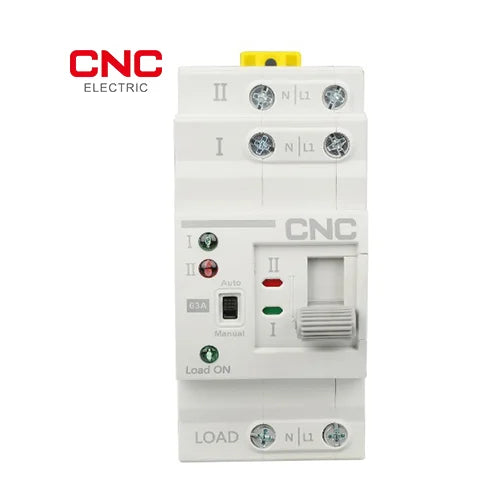

With clearly marked source I, source II and LOAD connections, front-panel status indicators and a manual control, this unit offers a compact approach to managing two available power supplies.

Key Features

• 2-pole configuration
• 63A current rating
• Automatic transfer between compatible main and standby supplies
• Under-voltage and over-voltage protection
• Manual operating control
• Source and load-on indicators

Technical Specifications

• Brand: CNC Electric
• Series: YCQR
• Type: Automatic Transfer Switch
• Poles: 2 Pole
• Current rating: 63A
• Protection: Under-voltage and over-voltage

Installation and Compatibility

Confirm voltage rating, protection thresholds, transfer delay and the manufacturer's wiring diagram before installation. Compatibility with generator, inverter or UPS supplies must be assessed for the specific equipment.

Installation must be performed by a qualified electrician with suitable protection, earthing and cable sizing. An ATS transfers between available sources; it does not generate backup power or guarantee uninterrupted supply.
