CNC MC4 Connector 10mm Solid Pin DC 1500V | Heavy-Duty Solar Panel Connection

Heavy-Duty Connections for Thick Solar Cables

The CNC MC4 Connector with 10mm Solid Pin is built for main solar runs where thicker 10mm² cable carries higher current from your array to the inverter or combiner box. Its solid tinned-copper pins keep resistance low and heat down, so less power is lost and your connections stay safe for years on the roof.

Key Features

• Solid pin contacts for 10mm² cable: lower resistance and better current flow than stamped pins
• Rated up to DC 1500V for modern high-voltage solar strings
• Tinned copper contacts resist corrosion and oxidation
• IP68-rated sealing with O-rings and gland cap, built for Pakistan's heat, dust, and monsoon
• Weather-resistant nylon body with strain-relief gland to hold the cable firmly
• Snap-lock male/female design for secure, vibration-resistant joints

Specifications

• Brand: CNC Electric

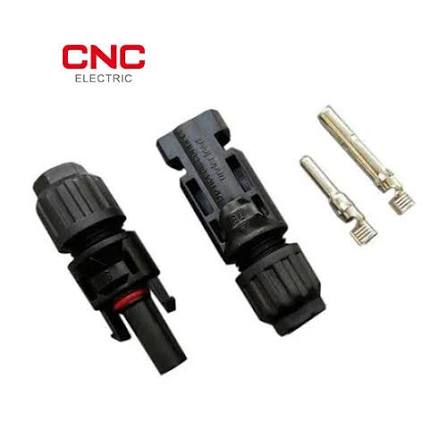

• Type: MC4 solar PV connector (male + female pair with pins)
• Pin Type: Solid tinned-copper pin
• Cable Size: 10mm²
• Rated Voltage: DC 1500V
• Protection Class: IP68
• Operating Temperature: -40°C to +85°C

Ideal For

• Main DC cable runs from solar array to inverter
• Large home, commercial, and industrial solar systems
• Combiner box and high-current string connections

Crimp with a proper MC4 crimping tool rated for 10mm² cable.
