CNC MC4 Connector with 20A Fuse DC 1000V | Safe Solar Power Connection

Built-In Fuse Protection Right at Your Solar Panel

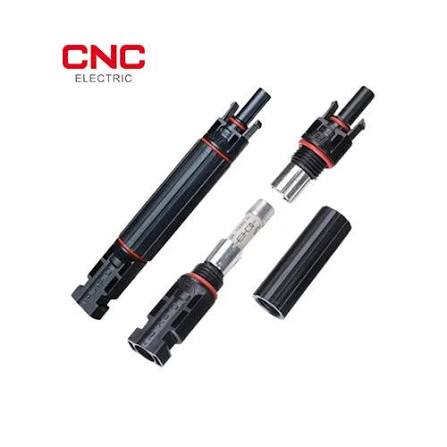

The CNC MC4 Inline Fuse Connector combines a standard MC4 connection with a 20A DC fuse inside a sealed housing. It protects each solar string from overcurrent and reverse current faults, so one bad panel or short circuit can't damage your cables, inverter, or the rest of your system. No extra fuse box needed: just plug it inline and you're protected.

Key Features

• Integrated 20A DC fuse for string-level overcurrent protection
• Rated DC 1000V for residential and commercial solar systems

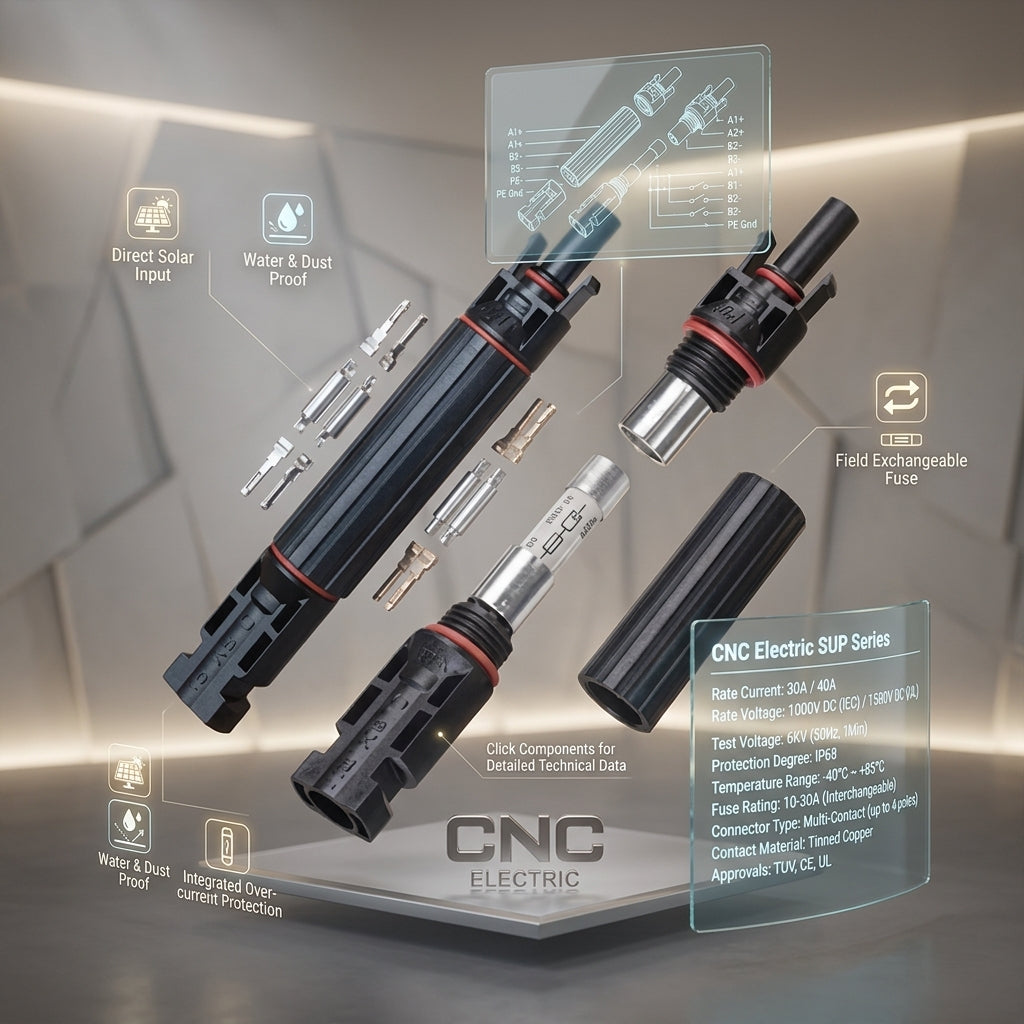

• Field-replaceable fuse: unscrew the housing to change the fuse, no need to replace the whole connector
• IP68 water & dust proof with red rubber seals, built for Pakistan's heat, dust, and monsoon
• Tinned copper contacts for low resistance and corrosion resistance
• Standard MC4 male/female ends: plugs directly into panels and MC4 cables

Specifications

• Brand: CNC Electric
• Type: MC4 inline fuse connector
• Fuse Rating: 20A
• Rated Voltage: DC 1000V
• Protection Degree: IP68
• Operating Temperature: -40°C to +85°C
• Contact Material: Tinned copper
• Test Voltage: 6kV (50Hz, 1 min)

Ideal For

• String protection when connecting solar panels in parallel
• Home, shop, and commercial rooftop solar systems
• Replacing bulky external fuse holders in small PV setups

Install with the correct polarity (input/output direction) and a proper MC4 crimping tool.
