CNC YCB7-63N 2 Pole MCB 10A-63A AC Miniature Circuit Breaker 400V 6kA C Curve

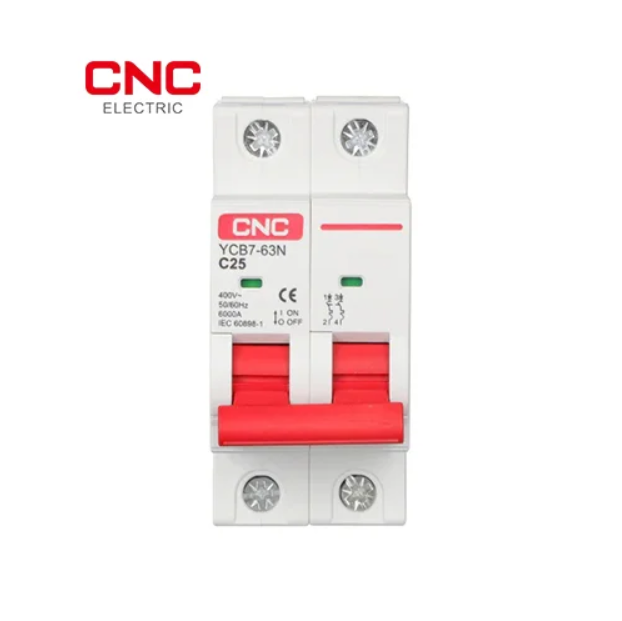

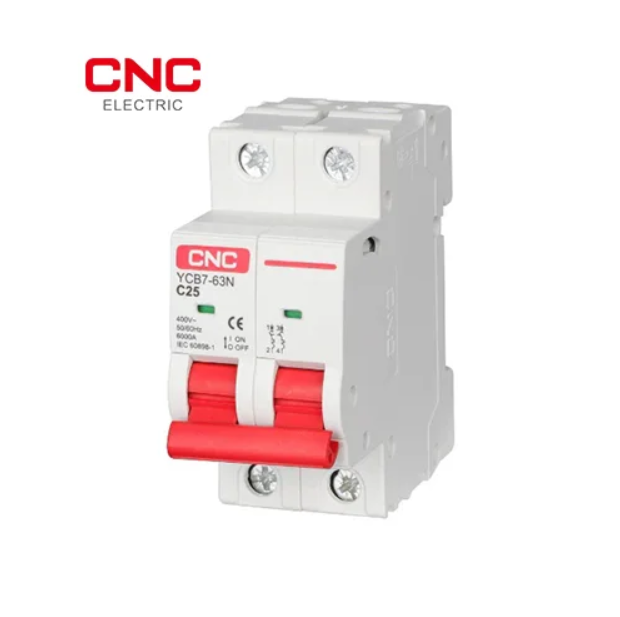

CNC YCB7-63N 2 Pole AC MCB (10A to 63A)

The CNC Electric YCB7-63N is a reliable 2 pole miniature circuit breaker that protects your wiring and appliances from overload and short circuits. When a fault happens, it trips both poles together and disconnects Live and Neutral for complete safety. It's a good fit for home DB boards, offices, shops, and the AC side of solar systems.

Key Features

• Model: YCB7-63N
• Poles: 2 Pole
• Current Range: 10A to 63A
• Rated Voltage: 400V~ AC, 50/60Hz
• Breaking Capacity: 6000A (6kA)
• Tripping Curve: C curve, suitable for general and mixed loads
• Standard: IEC 60898-1, CE marked
• Contact position indicator: a green window shows ON/OFF status
• Joined red handle: both poles switch together
• Mounting: standard 35mm DIN rail

Applications

• Home and apartment distribution boards
• Offices, shops, and commercial buildings
• AC, geyser, and motor circuits
• Solar inverter AC output protection

Why Choose CNC

• Fast, dependable tripping protects against fire risk
• Durable body built for Pakistan's heat and load conditions
• Trusted brand used by installers nationwide

Not sure which ampere rating you need? Contact Golden Sun Solar for expert guidance.
