CNC YCB7NLE-63 1P+N 32A Earth Leakage Breaker – 30mA

CNC 32A Earth Leakage Breaker

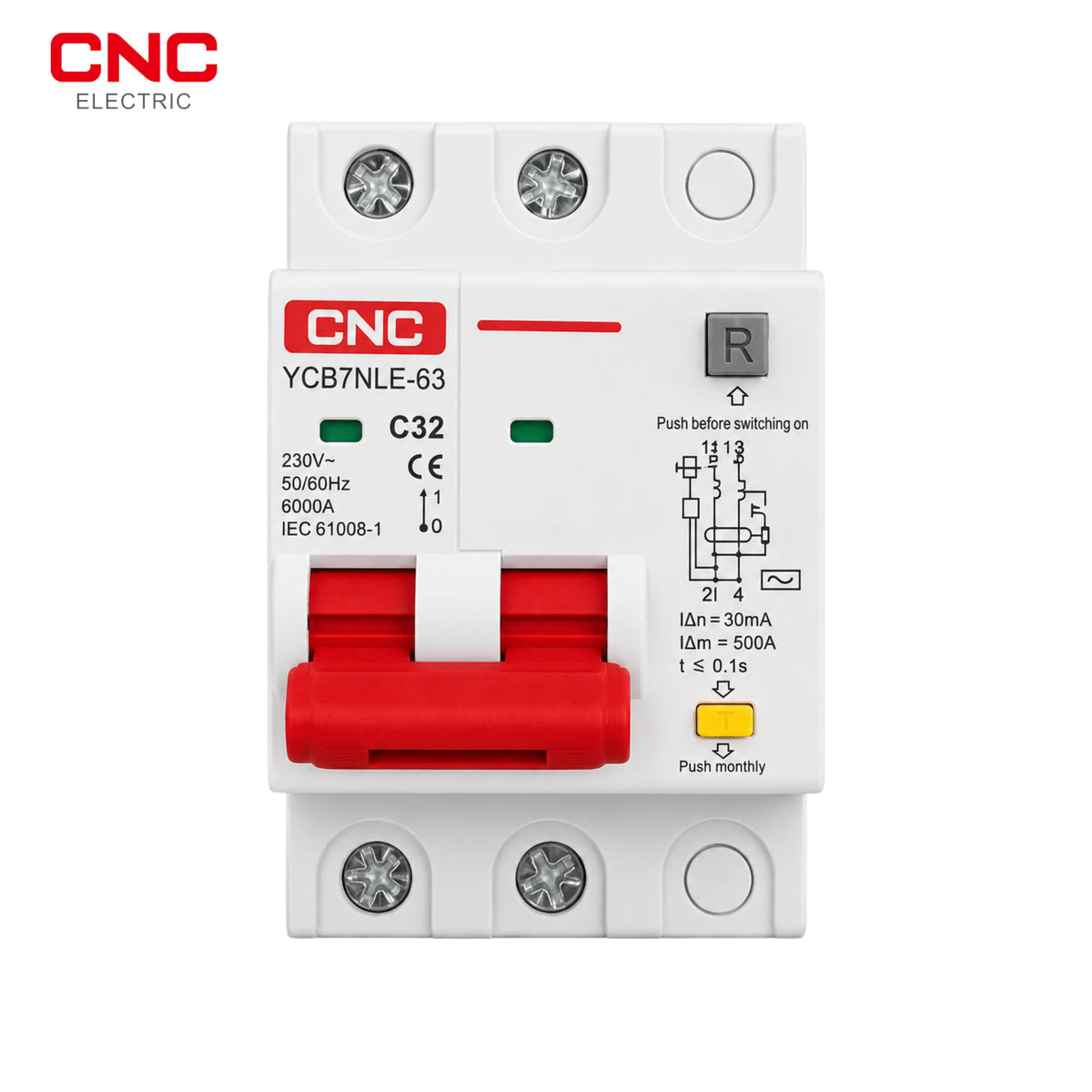

The CNC Electric YCB7NLE-63 is supplied as a 1P+N 32A earth leakage breaker. The pictured unit carries a C32 marking, 230 V AC rating and 30 mA residual-current marking, with a linked red operating handle, yellow test button and grey reset control.

Product Details

• Brand: CNC Electric
• Model: YCB7NLE-63
• Configuration: 1P+N, as supplied in the product information
• Current rating: 32 A; C32 marking shown
• Voltage marking: 230 V AC
• Frequency marking: 50/60 Hz
• Residual-current sensitivity marking: IΔn = 30 mA
• Additional visible markings: 6000 A; IΔm = 500 A; t ≤0.1 s
• Standard printed on the pictured unit: IEC 61008-1

Controls Shown

The front face includes a yellow button labelled “Push monthly” and a grey R control labelled “Push before switching on.” Follow the manufacturer's instructions for testing and operation rather than relying on the photograph alone.

Important Protection Classification Note

The supplied product name calls this an RCBO, while the pictured unit carries an IEC 61008-1 marking. Integrated overload and short-circuit protection, RCBO classification and the meaning of the 6000 A marking have not been independently confirmed for this exact unit. Have the manufacturer datasheet and supplied device verified by a qualified electrician before selecting it as combined residual-current and overcurrent protection. Do not assume that the C32 marking alone resolves this classification discrepancy.

Installation and Selection

For installation by a qualified electrician only. Confirm the exact protection type, circuit rating, wiring arrangement, required upstream protection and suitability for the connected equipment before use. Earth leakage protection does not replace correct earthing or safe electrical practices. No suitability for DC circuits or solar inverter applications is claimed without manufacturer confirmation.
