CNC YCB9-125 1 Pole MCB 100A AC Circuit Breaker 10kA | Reliable Overload Protection

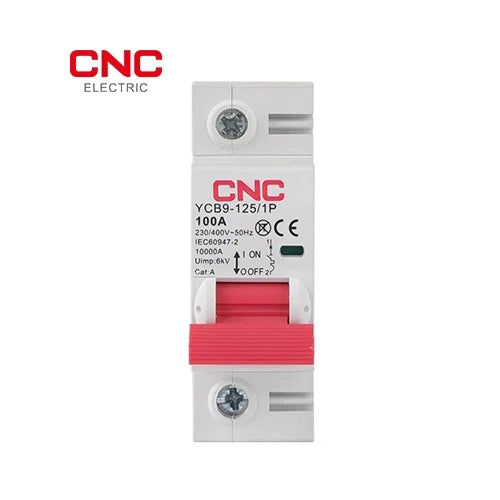

CNC YCB9-125/1P 100A Single Pole AC Breaker

The CNC Electric YCB9-125/1P is a heavy-duty 100A single pole circuit breaker for high-load circuits. With a high 10kA breaking capacity, it handles serious short-circuit faults safely, which makes it a strong choice as a main incoming breaker or for heavy appliance lines.

Specifications

• Model: YCB9-125/1P
• Poles: 1 Pole
• Rated Current: 100A
• Rated Voltage: 230/400V~ AC, 50Hz
• Breaking Capacity: 10000A (10kA)
• Rated Impulse Voltage (Uimp): 6kV
• Standard: IEC 60947-2, Category A, CE marked

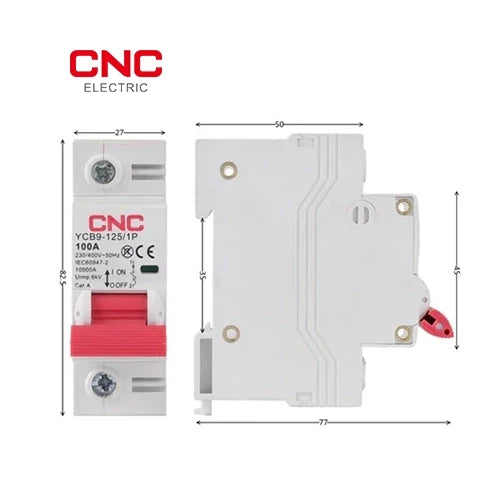

• Dimensions: 27mm (W) x 82.5mm (H) x 77mm (D)
• Mounting: 35mm DIN rail

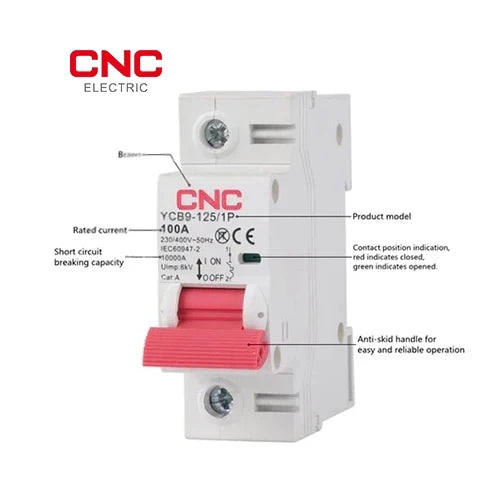

Features

• Contact position indicator: red means closed (ON) and green means open (OFF)
• Anti-skid handle: easy, reliable ON/OFF operation
• Clearly printed ratings on the front for quick identification
• Strong screw terminals for heavy cables

Applications

• Main incoming breaker for homes and shops
• Heavy loads such as multiple ACs, electric heaters, and motors
• Commercial and industrial distribution boards
• Solar inverter AC output lines

Need help choosing the right breaker? Contact Golden Sun Solar.
