CNC YCBZ-40 2 Pole Isolator Switch 40A DIN Rail

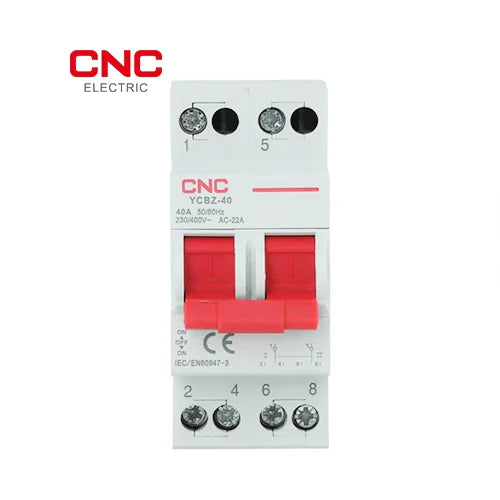

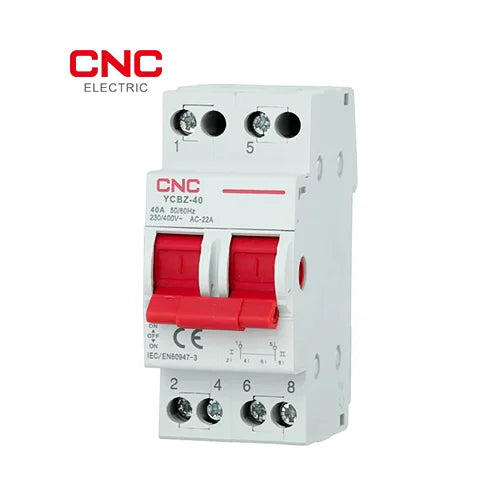

CNC YCBZ-40 2 Pole Isolator Switch, 40A, DIN Rail — a white two-module switch with two red ON/OFF handles for DIN rail mounting. The printed specs below are read from the label shown in multiple photos; the pole count is taken from the two-handle photos and should be confirmed before publishing.

What is confirmed (from the label and photos)

• Brand: CNC, printed on the photos
• Model: YCBZ-40, as printed on the label
• Rating: 40A, 50/60Hz, as printed on the label
• Voltage: 230/400V~, as printed on the label
• Utilization category: AC-22A, as printed on the label
• Standard: IEC/EN60947-3, as printed on the label
• Certification: CE mark shown on the label

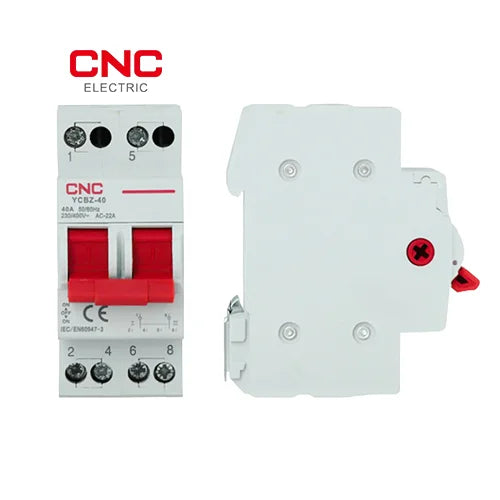

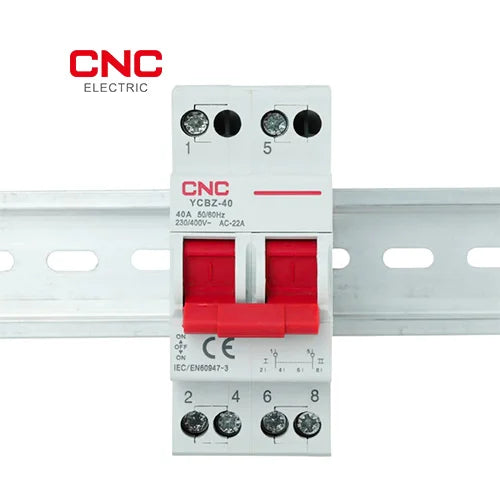

• Build: white two-module body with two red ON/OFF handles, DIN rail mounting (shown snapped onto a rail, with the rail clip and spring on the back), and terminals marked 1 and 5 on top and 2, 4, 6, and 8 at the bottom

To confirm before publishing

• Pole count — the two red handles suggest a 2-pole unit; confirm before publishing
• Terminal layout — the photos show terminals 1 and 5 on top and 2, 4, 6, and 8 at the bottom; confirm the wiring layout before publishing it
• Price — no rate was supplied, so the listing carries a 0.00 placeholder until a PKR price is set
