CNC YCD9-3 3-Phase DIN Rail Indicator Light – Red, Green & Yellow

Three-Colour Indication in a Single Panel Module

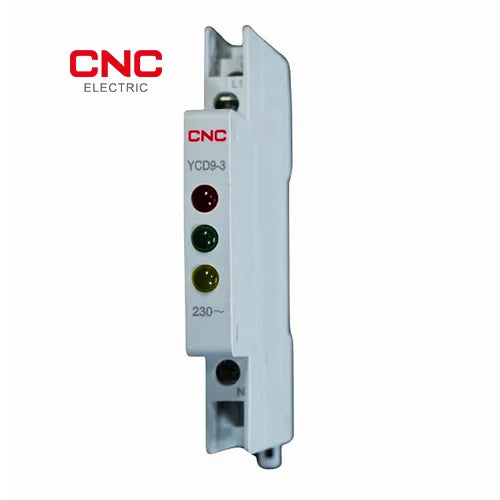

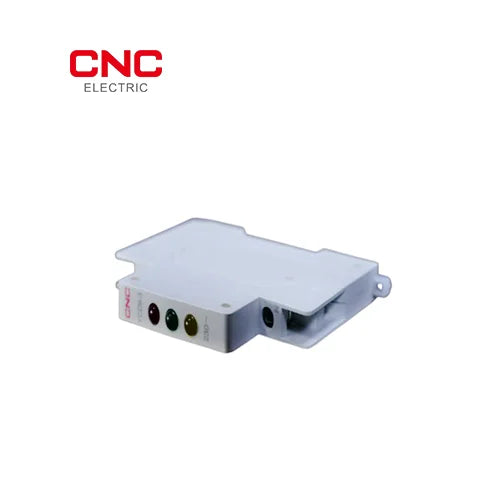

The CNC Electric YCD9-3 is supplied as a three-phase DIN rail indicator, with red, green and yellow lenses arranged vertically in one slim housing. It offers a compact visual indication point for a compatible electrical panel, separate from the single-phase YCD9-1 range.

Product Details

• Brand: CNC Electric
• Model shown: YCD9-3
• Application supplied: Three-phase panel signaling
• Mounting: DIN rail, as supplied in the product information
• Indicators shown: Red, green and yellow in one unit
• Visible voltage marking: 230 V AC; this marking alone does not establish the complete three-phase wiring arrangement
• Housing: Slim white module with screw-terminal openings and an N marking visible

Selection and Wiring

Have a qualified electrician verify the manufacturer's wiring diagram, per-indicator voltage rating, neutral requirements, frequency, dimensions and terminal specifications before connection. Do not infer a phase-to-phase connection rating from the 230 V marking. Indicator colours should be assigned consistently within the panel design.

No phase-sequence detection, phase-failure trip function, protection relay behaviour, LED construction, brightness or service-life guarantee is claimed from the supplied photographs. This is a signaling device, not a circuit breaker or protective relay.

Safe Installation

Isolate the supply before installation or maintenance and follow the manufacturer's instructions. Do not rely on the indicator as the sole means of proving that a circuit is safely de-energized. Confirm that the supplied model and ratings match the intended installation.
