CNC YCS6-C AC SPD Cartridge 385V | In 20kA, Imax 40kA Surge Protector

CNC YCS6-C Surge Protective Device Cartridge (385VAC) — the replaceable protection module for a YC-series AC surge setup. When a surge hits, this cartridge clamps the spike and its status window shows at a glance whether the module is still protecting the board, so a technician can swap a spent cartridge without replacing the whole device.

Specifications on the supplied label

• Model: CNC YCS6-C surge protective device cartridge
• Uc (maximum continuous voltage): 385VAC
• Imax (maximum discharge current): 40kA
• In (nominal discharge current): 20kA
• Up (voltage protection level): ≤1.8kV
• Standard: IEC 61643-1

Advertised by the supplier

• Integrated thermal disconnector
• Fast response time under 25ns
• Applications shown include industrial control boards, residential distribution panels, and solar power inverters

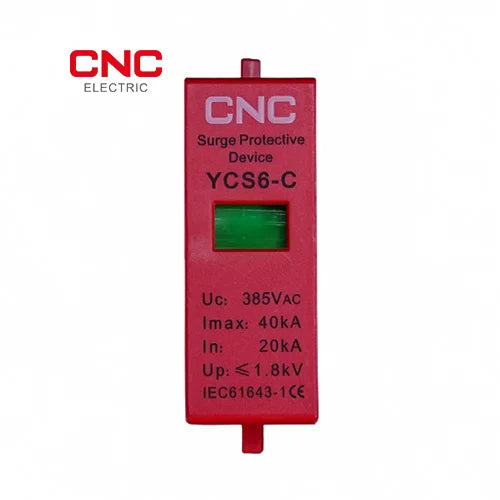

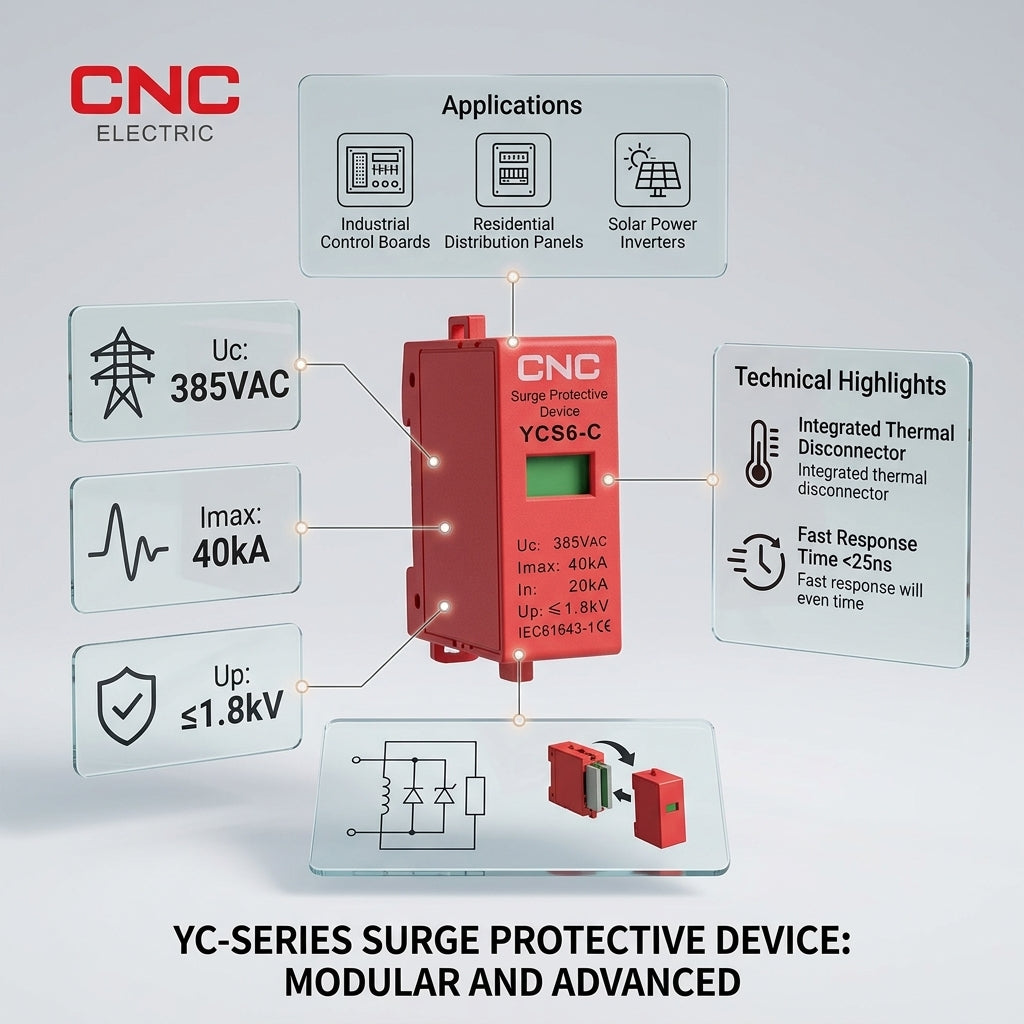

Photos: the listing images show the red YCS6-C 385VAC cartridge with its green status window, plus a supplier infographic listing the specifications above. The 275V option in this product family is listed separately.

Price: to be confirmed — the listing is saved as a draft with a 0.00 placeholder until a PKR price is set.
