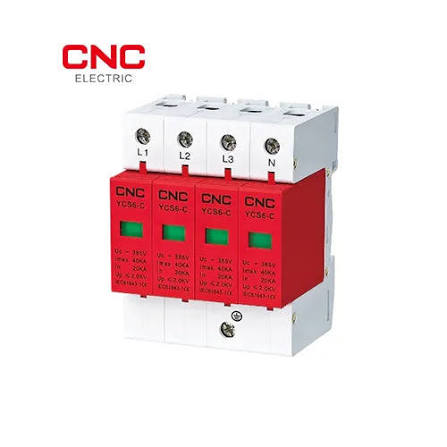

CNC YCS6-C AC Surge Protection Device SPD 4 Pole 385V – 20-40kA, 40-60kA, 60-80kA

Dependable 3-Phase Surge Protection by CNC Electric

The CNC YCS6-C AC Surge Protection Device protects three-phase (L1, L2, L3 + N) systems from lightning strikes and switching surges. Mounted in your distribution board, it diverts dangerous surge energy safely to earth, protecting solar inverters, motors, machinery, and sensitive electronics from costly damage.

Available Ratings

• 20kA–40kA (In 20kA / Imax 40kA): homes, shops, and standard solar installations
• 40kA–60kA (In 40kA / Imax 60kA): commercial buildings and larger solar systems
• 60kA–80kA (In 60kA / Imax 80kA): industrial sites and lightning-prone, high-exposure areas

Key Features

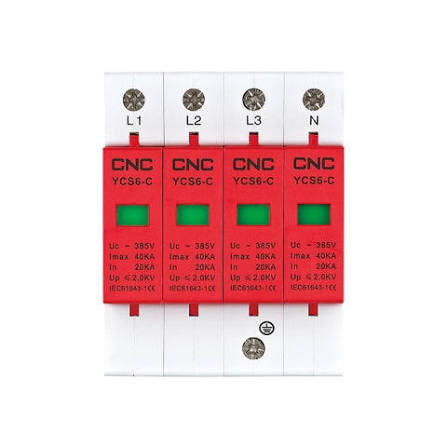

• 4 Pole (3P+N) complete three-phase + neutral protection
• 385V AC max continuous operating voltage
• Green/red status window on every pole for quick health checks
• Built-in thermal protection disconnects the module safely at end of life
• Plug-in modules for easy replacement
• 35mm DIN rail mounting for fast, clean installation

Technical Specifications

• Brand: CNC Electric
• Model: YCS6-C
• Type: AC Surge Protection Device (SPD)
• Poles: 4P (L1, L2, L3, N)
• Max Continuous Operating Voltage (Uc): 385V AC
• Discharge Current Options: 20–40kA, 40–60kA, 60–80kA
• Voltage Protection Level (Up): ≤2.0kV (20–40kA model)
• Mounting: 35mm DIN rail

Ideal Applications

• Solar PV systems, inverter AC side
• Residential, commercial, and industrial distribution boards
• Factories, plazas, and three-phase power systems
• Protection for CCTV, networking, and sensitive electronics

Install by a qualified electrician with proper earthing (PE) connection.
