CNC YCVA-3 3 Phase Voltage & Current Protector 4 Pole 63A / 100A DIN Rail VA Protection Device

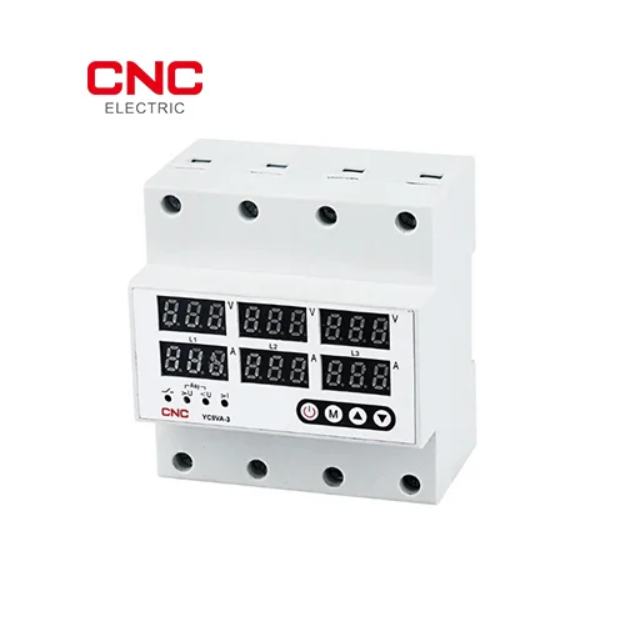

CNC YCVA-3 Three Phase VA Protection Device (4 Pole)

The CNC Electric YCVA-3 is a smart 3-phase voltage and current protector that watches your supply around the clock. If voltage goes too high or too low, or the current goes over the limit, it disconnects the load automatically. That protects your motors, machines, inverters, and home appliances from costly damage caused by unstable grid supply.

Key Features

• Model: YCVA-3

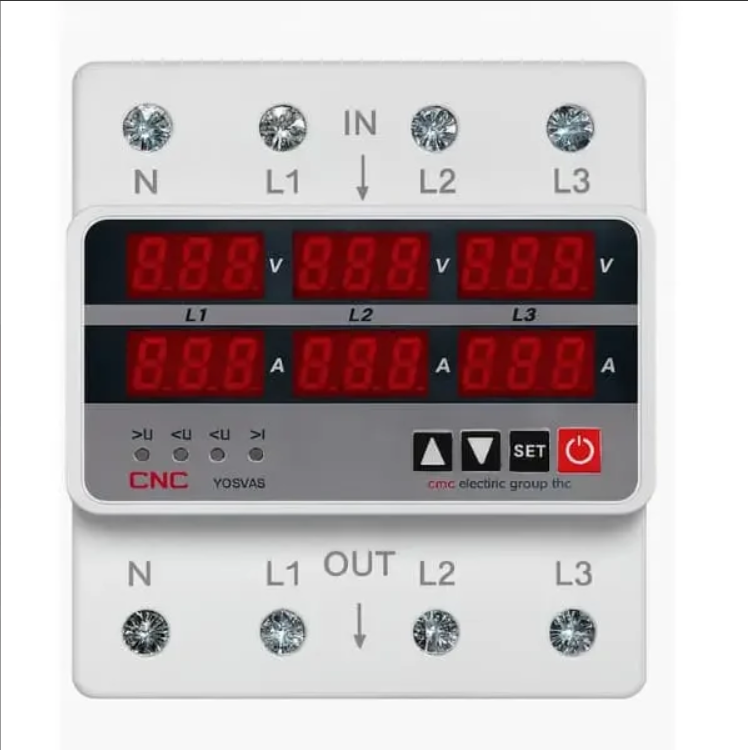

• Configuration: 4 Pole, 3 Phase + Neutral (L1, L2, L3, N)
• Rated Current Options: 63A / 100A

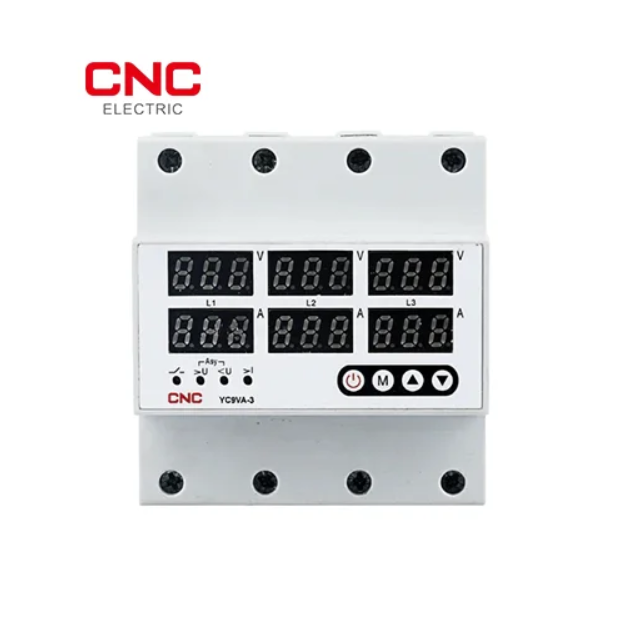

• 6 LED displays: live voltage (V) and current (A) readings for each phase (L1, L2, L3)
• Over-voltage protection (>U)
• Under-voltage protection (<U)
• Over-current protection (>I)
• Status indicator LEDs: show which fault has occurred
• Front keypad: power, mode, and up/down buttons to set your own limits
• Mounting: standard 35mm DIN rail

Applications

• Factories, workshops, and motor control panels
• Commercial buildings and plazas
• Homes with 3-phase supply
• Water pumps, HVAC, and industrial machinery
• Protecting solar inverters from grid fluctuations

Why You Need It

• Pakistan's grid often sees high and low voltage, and this device shields your equipment from both
• Live readings let you monitor your supply at a glance
• Adjustable limits for your exact load

Not sure whether you need 63A or 100A? Contact Golden Sun Solar for expert guidance.
