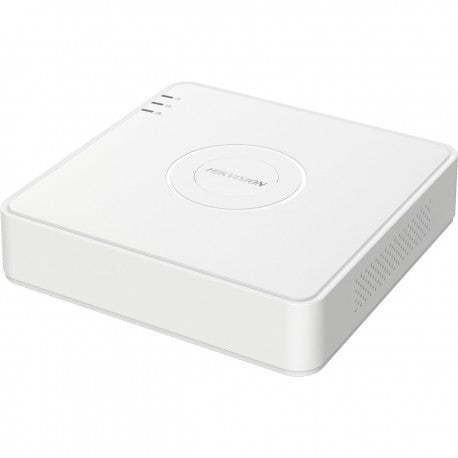

Hikvision DS-7104NI-Q1 4-Channel Mini 1U Network Video Recorder

Compact Recording for a Four-Camera IP System

The Hikvision DS-7104NI-Q1 is a 4-channel Mini 1U network video recorder supporting IP camera inputs up to 4 MP. Organize surveillance feeds from entrances, shop areas, and office spaces in a compact system with simultaneous HDMI and VGA output.

Features and Benefits

• Four IP camera inputs: Supports camera resolutions up to 4 MP.
• Video compression: H.265+, H.265, H.264+, and H.264 support.
• Decoding capacity: 4 channels at 1080p (25 fps) or 2 channels at 4 MP (25 fps).
• Network bandwidth: Up to 40 Mbps incoming and 60 Mbps outgoing.
• Simultaneous display output: HDMI and VGA output, each supporting up to 1920 × 1080 at 60 Hz.
• Single-drive storage: One SATA interface supporting an HDD up to 6 TB.

Video and Recording Specifications

• IP input: 4 channels, up to 4 MP
• Decoding formats: H.265+ / H.265 / H.264+ / H.264
• Decoding: 4-ch @ 1080p (25 fps) / 2-ch @ 4 MP (25 fps)
• Synchronous playback: 4 channels
• Recording resolutions: 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
• Stream types: Video; Video & Audio
• HDMI: 1 output; 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
• VGA: 1 output; 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
• Output mode: HDMI/VGA simultaneous output

Network and Storage

• Incoming bandwidth: 40 Mbps
• Outgoing bandwidth: 60 Mbps
• Remote connections: 16
• Network: 1 RJ45 10/100 Mbps self-adaptive Ethernet interface
• Protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP
• SATA: 1 interface; up to 6 TB per disk
• USB: Rear panel, 2 USB 2.0 ports
• Alarm input/output: N/A

General Specifications

• Power supply: 12 VDC, 1.5 A
• Consumption: ≤10 W
• Operating temperature: −10°C to +55°C
• Operating humidity: 10–90%
• Chassis: Mini 1U
• Dimensions (W × D × H): 200 × 200 × 48 mm
• Weight: ≤1 kg

Listed Certification Standards

• FCC: Part 15 Subpart B; ANSI C63.4-2014
• CE: EN50130-4; EN 61000-3-2; EN 61000-3-3

Installation Notes

This listing is for DS-7104NI-Q1, not DS-7104NI-Q1/M. Match camera stream settings to the stated input resolution, bandwidth, and decoding limits. Four camera inputs do not mean simultaneous decoding of four 4 MP streams. One SATA interface indicates HDD support, not an included drive. Confirm camera compatibility, HDD inclusion, camera power arrangements, and supplied accessories before purchase.
