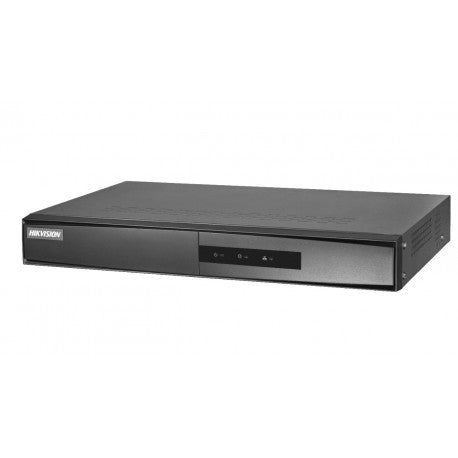

Hikvision DS-7104NI-Q1/M 4-Channel Mini 1U NVR

Compact Recording for a Four-Camera IP System

The Hikvision DS-7104NI-Q1/M is a 4-channel Mini 1U network video recorder with a metal case. Centralize compatible IP camera feeds from entrances, a shop floor, or office areas in a compact recording setup, with HDMI/VGA display output and a single SATA interface for storage.

Features and Benefits

• Four IP camera inputs: Supports up to 4 MP resolution according to the supplied detailed specification.
• Video format support: H.265+, H.265, H.264+, and H.264 decoding.
• 40 Mbps incoming bandwidth: Plan camera streams within the recorder's bandwidth limit.
• 60 Mbps outgoing bandwidth: As listed in the supplied network specification.
• Single-drive storage: One SATA interface supporting an HDD up to 6 TB.
• Compact metal case: Mini 1U format for organized installations.
• Third-party camera support: Compatible network cameras can be used; confirm compatibility before installation.

Decoding and Recording Specifications

• IP camera input: 4 channels, up to 4 MP
• Decoding formats: H.265+ / H.265 / H.264+ / H.264
• Decoding capacity: 1 channel at 4 MP or 2 channels at 1080p
• Synchronous playback: 4 channels
• Live view, playback, and recording resolutions: 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
• HDMI/VGA output resolutions: 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz

Network, Storage and Interfaces

• Incoming bandwidth: 40 Mbps
• Outgoing bandwidth: 60 Mbps
• Network interface: 1 RJ45 10/100 Mbps self-adaptive Ethernet interface
• Protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP
• USB: 2 USB 2.0 interfaces
• SATA: 1 interface
• Maximum disk capacity: 6 TB

General Specifications

• Power supply: 12 VDC
• Power specification: ≤18 W
• Consumption without hard disk: ≤10 W
• Operating temperature: −10°C to +55°C
• Operating humidity: 10–90%
• Chassis: Mini 1U, metal case
• Dimensions (W × D × H): 260 × 225 × 48 mm
• Weight without hard disk: ≤1 kg

Specification and Ordering Notes

The supplied feature summary mentions 6 MP support and 4-channel 1080p decoding, while the detailed specification lists a 4 MP input/recording limit and decoding of 1 channel at 4 MP or 2 channels at 1080p. This listing follows the detailed specification; confirm the exact hardware revision before purchase if those capabilities are essential.

Four-channel synchronous playback is separate from decoding capacity. A SATA interface indicates HDD support, not an included hard drive. Confirm camera compatibility, HDD inclusion, camera power arrangements, and supplied accessories before installation.
