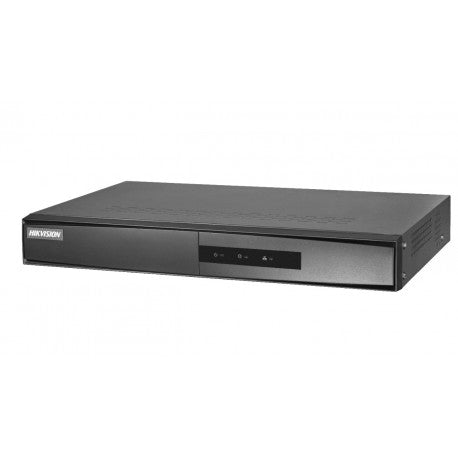

Hikvision DS-7108NI-Q1/8P/M 8-Channel Mini 1U PoE NVR

Eight-Camera Recording with Built-In PoE

The Hikvision DS-7108NI-Q1/8P/M is an 8-channel Mini 1U network video recorder with eight PoE ports and IP camera input resolutions up to 4 MP. Connect compatible cameras around entrances, retail areas, and offices, with power and network connectivity through its PoE interfaces, subject to the total power budget.

Features and Benefits

• Eight IP inputs and eight PoE ports: Supports IEEE 802.3af/at compatible cameras with a total PoE power budget of up to 75 W.
• Compression support: H.265+, H.265, H.264+, and H.264 video formats.
• Decoding capacity: 4 channels at 1080p (25 fps) or 2 channels at 4 MP (25 fps).
• Network bandwidth: 60 Mbps incoming and 60 Mbps outgoing.
• Simultaneous outputs: HDMI and VGA support display resolutions up to 1920 × 1080 at 60 Hz.
• Single-drive storage: One SATA interface supports an HDD up to 6 TB.

Video and Recording Specifications

• IP video input: 8 channels, up to 4 MP
• HDMI: 1 output; 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
• VGA: 1 output; 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
• Output mode: HDMI/VGA simultaneous output
• Decoding formats: H.265+ / H.265 / H.264+ / H.264
• Recording resolutions: 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
• Synchronous playback: 8 channels
• Decoding: 4-ch @ 1080p (25 fps) / 2-ch @ 4 MP (25 fps)
• Stream types: Video; Video & Audio

Network and PoE

• Incoming/outgoing bandwidth: 60 Mbps / 60 Mbps
• Remote connections: 16
• Protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP
• Network interface: 1 RJ45 10/100 Mbps self-adaptive Ethernet interface
• PoE interfaces: 8 RJ45 10/100 Mbps self-adaptive Ethernet interfaces
• PoE power: ≤75 W total
• PoE standard: IEEE 802.3af/at

Storage and Auxiliary Interfaces

• SATA: 1 interface
• HDD capacity: Up to 6 TB per disk
• Alarm input/output: N/A
• USB: Rear panel, 2 USB 2.0 ports

General Specifications

• Power supply: 48 VDC, 1.8 A
• Listed recorder consumption: ≤10 W; PoE power budget is listed separately
• Operating temperature: −10°C to +55°C
• Operating humidity: 10–90%
• Chassis: Mini 1U
• Dimensions (W × D × H): 265 × 225 × 48 mm
• Weight: ≤1 kg

Listed Certification Standards

• FCC: Part 15 Subpart B; ANSI C63.4-2014
• CE: EN50130-4; EN 61000-3-2; EN 61000-3-3

Installation Notes

This listing is for the eight-PoE-port DS-7108NI-Q1/8P/M, separate from DS-7108NI-Q1/M. The 75 W PoE budget is shared across the ports, not available at each port. Match camera power requirements, stream settings, and bandwidth to the recorder limits. Eight inputs and eight-channel synchronous playback do not imply simultaneous decoding of eight 4 MP streams. HDD support does not indicate an included drive. Confirm HDD inclusion and supplied accessories before purchase.
