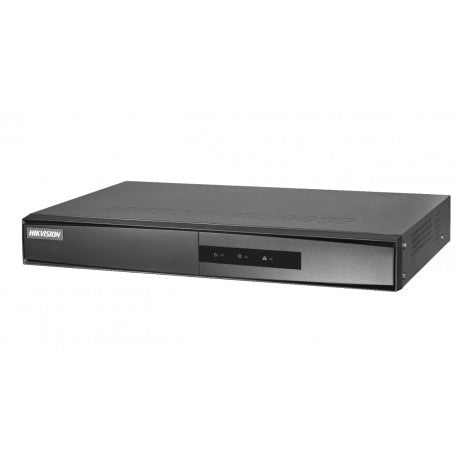

Hikvision DS-7108NI-Q1/M 8-Channel Mini 1U Network Video Recorder

Compact Recording for an Eight-Camera IP System

The Hikvision DS-7108NI-Q1/M Mini 1U network video recorder supports up to eight IP camera inputs, with resolutions up to 4 MP according to the supplied detailed specifications. Bring entrance, shop, office, and storage-area feeds into one recording system housed in a metal case.

Features and Benefits

• Eight IP camera inputs: Centralize recording for a multi-camera installation.
• Video compression support: H.265+, H.265, H.264+, and H.264 decoding.
• 60 Mbps bandwidth: Supports up to 60 Mbps incoming and 60 Mbps outgoing bandwidth.
• HDMI/VGA output: Display resolutions up to 1920 × 1080 at 60 Hz.
• Single-drive storage: One SATA interface supports an HDD up to 6 TB.
• Third-party network camera compatibility: Confirm compatibility with the intended camera model and stream settings before installation.

Video, Recording and Decoding

• IP video input: 8 channels, up to 4 MP
• Live view/playback and recording resolutions: 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
• Decoding formats: H.265+ / H.265 / H.264+ / H.264
• Decoding capability: 1 channel at 4 MP or 2 channels at 1080p
• Synchronous playback: 8 channels
• HDMI/VGA output resolutions: 1920 × 1080/60 Hz; 1280 × 1024/60 Hz; 1280 × 720/60 Hz; 1024 × 768/60 Hz

Network and Interfaces

• Incoming bandwidth: 60 Mbps
• Outgoing bandwidth: 60 Mbps
• Ethernet: 1 RJ45 10/100 Mbps self-adaptive interface
• Protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP
• USB: 2 USB 2.0 interfaces
• SATA: 1 interface
• HDD capacity: Up to 6 TB per disk

General Specifications

• Power supply: 12 VDC
• Listed power: ≤18 W
• Consumption without hard disk: ≤10 W
• Operating temperature: −10°C to +55°C
• Operating humidity: 10–90%
• Chassis: Mini 1U, metal case
• Dimensions (W × D × H): 260 × 225 × 48 mm
• Weight without hard disk: ≤1 kg

Specification and Installation Notes

The supplied feature overview mentions 6 MP and 4-channel 1080p decoding, while the detailed specifications state up to 4 MP input/recording and decoding of 1 channel at 4 MP or 2 channels at 1080p. This listing uses the detailed specifications; verify the exact hardware version before purchase. Eight camera inputs and eight-channel synchronous playback do not imply simultaneous decoding of eight high-resolution streams. HDD support does not confirm an included drive. Confirm HDD inclusion, camera power arrangements, compatibility, and supplied accessories.
