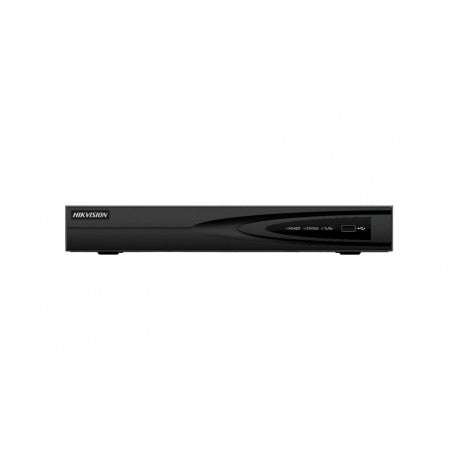

Hikvision DS-7604NI-Q1 4-Channel 4K Network Video Recorder

4-Channel IP Surveillance with 4K HDMI Output

The Hikvision DS-7604NI-Q1 is a 4-channel 1U network video recorder supporting IP camera inputs up to 8 MP. Bring feeds from entrances, shop areas, or office spaces into one recording setup, with simultaneous HDMI and VGA output of the same video stream.

Features and Benefits

• Four IP camera inputs: Supports up to 8 MP camera resolution.
• 4K live view, storage and playback support: HDMI display output up to 3840 × 2160 at 30 Hz.
• Video decoding: H.265, H.265+, H.264, H.264+, and MPEG4.
• Decoding capacity: 1 channel at 8 MP or 4 channels at 1080p.
• 40 Mbps incoming bandwidth: Plan camera streams within the stated limit.
• Single SATA interface: Supports a hard disk up to 6 TB.
• Third-party camera support: Compatible network cameras can be connected; confirm compatibility before installation.

Decoding and Recording

• IP video input: 4 channels, up to 8 MP
• Formats: H.265 / H.265+ / H.264 / H.264+ / MPEG4
• Decoding: 1-ch @ 8 MP / 4-ch @ 1080p
• Synchronous playback: 4 channels
• Video and recording resolutions: 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF

Video and Audio Outputs

• HDMI: 1 channel; 3840 × 2160/30 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
• VGA: 1 channel; 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
• Output mode: HDMI/VGA simultaneous output of the same video stream
• Two-way audio input: 1-channel RCA, 2.0 Vp-p, 1 kΩ
• Audio output: 1-channel RCA, linear, 1 kΩ

Network and Storage

• Incoming bandwidth: 40 Mbps
• Outgoing bandwidth: 80 Mbps
• Network interface: 1 RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
• Protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
• USB: 2 USB 2.0 interfaces
• SATA: 1 interface; up to 6 TB per disk

General Specifications

• Power supply: 12 VDC
• Power specification: ≤18 W
• Consumption without HDD: ≤10 W
• Operating temperature: −10°C to +55°C
• Operating humidity: 10–90%
• Chassis: 1U
• Dimensions (W × D × H): 315 × 240 × 48 mm
• Weight without HDD: ≤1 kg

Installation Notes

Camera input capacity, decoding capacity, and synchronous playback are separate limits. Four camera inputs do not mean simultaneous decoding of four 8 MP streams. One SATA interface indicates hard-drive support, not an included HDD. Confirm camera compatibility, storage inclusion, camera power arrangements, and supplied accessories before purchase.
