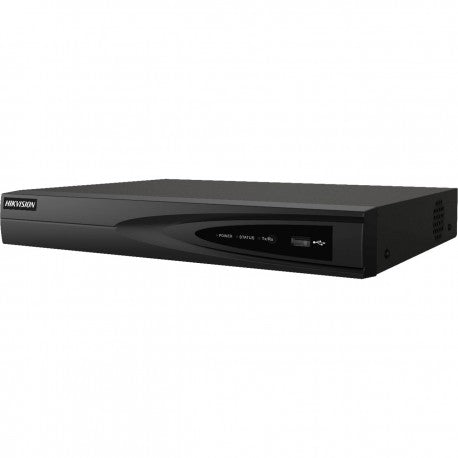

Hikvision DS-7608NI-K1 8-Channel 4K Network Video Recorder

Eight-Camera IP Recording with 4K HDMI Output

The Hikvision DS-7608NI-K1 is a 1U network video recorder supporting eight IP camera inputs and recording resolutions up to 8 MP. Centralize camera feeds from entrances, retail areas, offices, and storage spaces, with HDMI output up to 4K at 30 Hz and a single SATA interface for storage.

Features and Benefits

• Eight IP camera inputs: Connect up to eight network cameras.
• Video format support: H.265+, H.265, H.264+, and H.264 decoding.
• 4K HDMI output: Supports 4096 × 2160 and 3840 × 2160 at 30 Hz.
• Decoding capacity: 1 channel at 8 MP (30 fps) or 5 channels at 1080p (30 fps).
• Network bandwidth: 80 Mbps incoming and 80 Mbps outgoing.
• Single-drive storage: Supports one HDD up to 8 TB.

Video and Audio

• IP video input: 8 channels
• HDMI: 4096 × 2160/30 Hz; 3840 × 2160/30 Hz; 2560 × 1440/60 Hz; 1920 × 1080/60 Hz; 1600 × 1200/60 Hz; 1280 × 1024/60 Hz; 1280 × 720/60 Hz
• VGA: 1920 × 1080/60 Hz; 1280 × 1024/60 Hz; 1280 × 720/60 Hz
• Audio output: 1-channel RCA, linear, 1 kΩ
• Two-way audio: 1-channel RCA, 2.0 Vp-p, 1 kΩ

Decoding and Recording

• Formats: H.265+ / H.265 / H.264+ / H.264
• Decoding: 1-ch @ 8 MP (30 fps) / 5-ch @ 1080p (30 fps)
• Synchronous playback: 8 channels
• Recording resolutions: 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF

Network, Storage and Interfaces

• Ethernet: 1 RJ45 10/100 Mbps self-adaptive interface
• Protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
• SATA: 1 interface; up to 8 TB per disk
• USB: 2 USB 2.0 interfaces
• Built-in PoE: None
• RAID: Not supported
• Alarm input/output: Not standard; optional 4-input/1-output configuration, subject to supplied version

General Specifications

• Power supply: 12 VDC, 1.5 A
• Consumption: ≤10 W
• Operating temperature: −10°C to +55°C
• Operating humidity: 10–90%
• Chassis: 1U
• Dimensions (W × D × H): 320 × 240 × 48 mm
• Weight: ≤1 kg

Installation Notes

This model has no built-in PoE ports; arrange suitable external camera power or a compatible PoE switch. HDD support does not indicate an included hard drive. Confirm HDD inclusion, optional alarm interfaces, camera compatibility, and supplied accessories before purchase. Eight camera inputs and eight-channel synchronous playback do not imply simultaneous decoding of eight 8 MP streams. Match camera settings to the stated bandwidth and decoding limits.
