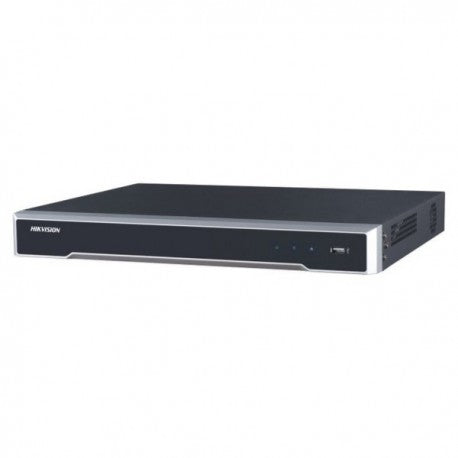

Hikvision DS-7608NI-K2 8-Channel 4K Network Video Recorder

Eight-Camera Recording with Dual-Drive Storage Support

The Hikvision DS-7608NI-K2 is an 8-channel 1U network video recorder supporting recording resolutions up to 8 MP and 4K HDMI output. Bring entrance, shop-floor, office, and parking-area camera feeds into one recording system, with independent HDMI and VGA outputs and two SATA interfaces for expanded storage options.

Features and Benefits

• Eight IP camera inputs: Centralize a multi-camera surveillance installation.
• Decoding performance: 2 channels at 8 MP (25 fps), 4 channels at 4 MP (30 fps), or 8 channels at 1080p (30 fps).
• Independent video outputs: One HDMI and one VGA interface; HDMI supports 3840 × 2160 at 30 Hz.
• Dual-drive support: Two SATA interfaces, each supporting an HDD up to 6 TB.
• Gigabit Ethernet: One self-adaptive 10/100/1000 Mbps RJ45 interface.
• Special-function camera support: Supports some people-counting and ANPR cameras, subject to model compatibility. These capabilities require compatible cameras and are not a claim of universal built-in analytics.
• Channel-zero function: Supports remote viewing in low-bandwidth environments.
• Third-party network camera support: Confirm compatibility with the intended camera models.

Recording and Decoding

• IP video input: 8 channels
• Recording resolutions: 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
• Decoding formats: H.265 / H.265+ / H.264 / H.264+ / MPEG4
• Synchronous playback: 8 channels
• Decoding: 2-ch @ 8 MP (25 fps) / 4-ch @ 4 MP (30 fps) / 8-ch @ 1080p (30 fps)

Video and Audio Interfaces

• HDMI: 3840 × 2160/30 Hz; 2560 × 1440/60 Hz; 1920 × 1080/60 Hz; 1600 × 1200/60 Hz; 1280 × 1024/60 Hz; 1280 × 720/60 Hz; 1024 × 768/60 Hz
• VGA: 1920 × 1080/60 Hz; 1280 × 1024/60 Hz; 1280 × 720/60 Hz; 1024 × 768/60 Hz
• Two-way audio input: 1-channel RCA, 2.0 Vp-p, 1 kΩ
• Audio output: 1-channel RCA, linear, 1 kΩ
• USB: Front panel, 1 USB 2.0; rear panel, 1 USB 3.0
• Alarm input/output: 4/1

Network and Storage

• Network interface: 1 RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
• Outgoing bandwidth: 80 Mbps
• Protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
• SATA: 2 interfaces
• Capacity: Up to 6 TB per HDD

General Specifications

• Power supply: 12 VDC; listed power ≤40 W
• Consumption without HDD: ≤15 W
• Operating temperature: −10°C to +55°C
• Operating humidity: 10–90%
• Chassis: 1U
• Dimensions (W × D × H): 385 × 315 × 52 mm
• Weight without HDD: ≤1 kg

Installation and Specification Notes

The supplied overview states 80 Mbps incoming bandwidth, while the detailed specifications state 160 Mbps incoming bandwidth. An incoming-bandwidth rating is therefore not claimed in this listing; verify the exact hardware version before planning camera streams. Two SATA interfaces describe supported drives, not included HDDs. Confirm HDD inclusion, camera power arrangements, special-function camera compatibility, and supplied accessories before purchase. Eight camera inputs do not imply simultaneous decoding of eight 8 MP streams.
