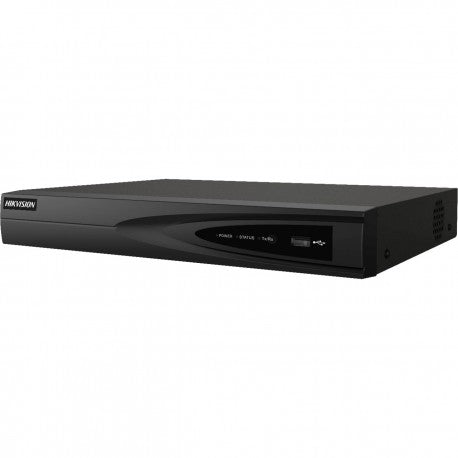

Hikvision DS-7608NI-Q1 8-Channel 4K NVR

8-Channel IP Surveillance with 4K HDMI Output

The Hikvision DS-7608NI-Q1 brings up to eight IP camera inputs into a compact 1U network video recorder. Monitor entrances, shop floors, and office areas from one recording system, with simultaneous HDMI and VGA output and eight-channel synchronous playback for reviewing recorded events.

Features and Benefits

• 8 IP camera inputs: Centralize an eight-camera surveillance installation.
• 4K HDMI output: Supports up to 4096 × 2160 at 30 Hz on a compatible display.
• Simultaneous HDMI/VGA output: Connect compatible displays using both output types.
• Video formats: H.265+, H.265, H.264+, and H.264 decoding support.
• 80 Mbps incoming and outgoing bandwidth: Plan camera streams within the recorder's bandwidth limits.
• Storage support: One SATA interface supporting a disk up to 8 TB.
• Hik-Connect protocol support: Included among the supported network protocols.

Video and Audio Specifications

• IP video input: 8 channels
• HDMI output: 1 channel; 4096 × 2160/30 Hz, 3840 × 2160/30 Hz, 2560 × 1440/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• VGA output: 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• Video output mode: HDMI/VGA simultaneous output
• Incoming bandwidth: 80 Mbps
• Outgoing bandwidth: 80 Mbps
• Audio output: 1-channel RCA, linear, 1 kΩ
• Two-way audio: 1-channel RCA, 2.0 Vp-p, 1 kΩ

Decoding and Recording

• Decoding formats: H.265+ / H.265 / H.264+ / H.264
• Decoding capability: 1 channel at 8 MP, 30 fps, or 5 channels at 1080p, 30 fps
• Synchronous playback: 8 channels
• Recording resolutions: 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF

Network and Interfaces

• Network interface: 1 RJ45 10/100 Mbps self-adaptive Ethernet interface
• Protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
• Built-in PoE interface: None
• RAID: Not supported
• SATA: 1 interface; up to 8 TB per disk
• USB: 1 USB 2.0 port on the front and 1 USB 2.0 port on the rear

General Specifications

• Power supply: 12 VDC, 1.5 A
• Power consumption: ≤10 W
• Operating temperature: −10°C to +55°C
• Operating humidity: 10–90%
• Chassis: 1U
• Dimensions (W × D × H): 320 × 240 × 48 mm
• Weight: ≤1 kg

Installation Notes

This model has no built-in PoE ports. Provide compatible camera power and network equipment separately as needed. Eight camera inputs and eight-channel synchronous playback do not mean eight-channel 8 MP decoding; observe the stated decoding limits. Hard-drive inclusion and supplied accessories should be confirmed before purchase.
