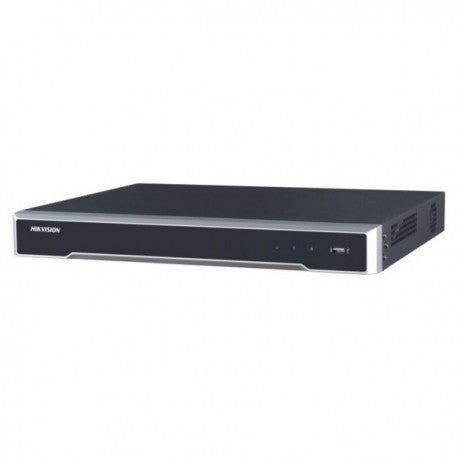

Hikvision DS-7608NI-Q2 8-Channel 4K Network Video Recorder

Eight-Camera Recording with 4K Display and Dual-Drive Support

The Hikvision DS-7608NI-Q2 is an 8-channel 1U network video recorder supporting IP camera inputs and recording resolutions up to 8 MP. Bring shop, entrance, office, and storage-area feeds into one system, with independent HDMI and VGA outputs and two SATA interfaces for recording and backup storage.

Features and Benefits

• Eight IP camera inputs: Supports connected cameras at up to 8 MP resolution.
• Video format support: H.265+, H.265, H.264, and H.264+. H.265+ can reduce storage requirements, with actual savings depending on the scene and settings.
• 4K HDMI output: Up to 3840 × 2160 at 30 Hz, with independent VGA output.
• Dual SATA interfaces: Supports up to 6 TB per HDD.
• Network bandwidth: 80 Mbps incoming and 80 Mbps outgoing.
• Gigabit Ethernet: One self-adaptive 10/100/1000 Mbps network interface.
• Playback tools: Instant playback for an assigned channel during multi-channel display, selected-area smart search, and smart playback.
• Smart-camera integration: Supports VCA detection alarms and recording, playback, and backup of VCA alarms from compatible Hikvision smart IP cameras.
• Camera management: Supports camera configuration, information import/export, real-time information display, two-way audio, and upgrades, subject to camera compatibility.
• Hik-Connect: Supports network management, plus compatible third-party network cameras.

Video and Decoding Specifications

• IP input: 8 channels, up to 8 MP
• Recording and live view/playback resolutions: 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
• Decoding capability: 1 channel at 8 MP or 4 channels at 1080p
• Synchronous playback: 8 channels
• HDMI: 1 output; 3840 × 2160/30 Hz; 1920 × 1080/60 Hz; 1600 × 1200/60 Hz; 1280 × 1024/60 Hz; 1280 × 720/60 Hz; 1024 × 768/60 Hz
• VGA: 1 output; 1920 × 1080/60 Hz; 1280 × 1024/60 Hz; 1280 × 720/60 Hz; 1024 × 768/60 Hz
• Two-way audio input: 1-channel RCA, 2.0 Vp-p, 1 kΩ
• Audio output: 1-channel RCA, linear, 1 kΩ

Network and Storage

• Incoming bandwidth: 80 Mbps
• Outgoing bandwidth: 80 Mbps
• Network: 1 RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
• SATA: 2 interfaces
• Capacity: Up to 6 TB per HDD
• USB: 2 USB 2.0 interfaces

General Specifications

• Power supply: 12 VDC
• Listed consumption without HDD and PoE: ≤15 W
• Operating temperature: −10°C to +55°C
• Operating humidity: 10–90%
• Chassis: 1U
• Dimensions: 385 × 315 × 52 mm
• Weight without HDD: ≤1.8 kg

Specification and Installation Notes

The supplied overview mentions sixteen cameras, while the detailed specifications state eight IP inputs. This listing uses the detailed eight-channel specification. Eight inputs and eight-channel synchronous playback do not imply simultaneous decoding of eight 8 MP streams. Two SATA interfaces indicate HDD support, not included drives. The power-consumption wording does not confirm built-in PoE ports. Confirm camera compatibility, VCA feature support, HDD inclusion, camera power arrangements, and supplied accessories before purchase.
