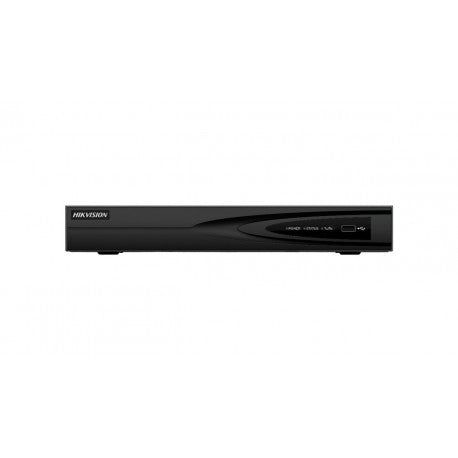

Hikvision DS-7616NI-K1 16-Channel 4K Network Video Recorder

16-Channel IP Surveillance with 4K HDMI Output

The Hikvision DS-7616NI-K1 is a compact 1U network video recorder supporting up to 16 IP cameras and recording resolutions up to 8 MP. Centralize feeds from entrances, offices, retail areas, and storage spaces, with independent HDMI and VGA outputs for flexible monitoring.

Features and Benefits

• 16 IP camera inputs: Connect up to sixteen network cameras.
• Video compression support: H.265+, H.265, H.264+, and H.264 decoding.
• 4K viewing: HDMI output supports 3840 × 2160 at 30 Hz, with support for 4K live view, storage, and playback.
• Independent video outputs: One HDMI and one VGA interface.
• Network bandwidth: 160 Mbps incoming and 80 Mbps outgoing.
• Single-drive storage: One SATA interface supports an HDD up to 6 TB.

Recording and Network Specifications

• IP video input: 16 channels
• Recording resolutions: 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
• Synchronous playback: 16 channels
• Incoming bandwidth: 160 Mbps
• Outgoing bandwidth: 80 Mbps
• Network: 1 RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
• Protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS

Video and Audio Interfaces

• HDMI: 3840 × 2160/30 Hz; 1920 × 1080/60 Hz; 1600 × 1200/60 Hz; 1280 × 1024/60 Hz; 1280 × 720/60 Hz; 1024 × 768/60 Hz
• VGA: 1920 × 1080/60 Hz; 1600 × 1200/60 Hz; 1280 × 1024/60 Hz; 1280 × 720/60 Hz; 1024 × 768/60 Hz
• Two-way audio input: 1-channel RCA, 2.0 Vp-p, 1 kΩ
• Audio output: 1-channel RCA, linear, 1 kΩ
• USB: 2 USB 2.0 interfaces

Storage and General Specifications

• SATA: 1 interface for 1 HDD
• Disk capacity: Up to 6 TB
• Power supply: 12 VDC
• Consumption without HDD: ≤10 W
• Operating temperature: −10°C to +55°C
• Operating humidity: 10–90%
• Chassis: 1U
• Dimensions (W × D × H): 315 × 240 × 48 mm
• Weight without HDD: ≤1 kg

Installation Notes

This listing is for DS-7616NI-K1, separate from DS-7616NI-K1-B. Camera input count and synchronous playback count do not establish simultaneous high-resolution decoding capacity, which is not specified in the supplied details. Confirm decoding requirements and camera compatibility before installation. SATA capacity describes HDD support, not an included hard drive. Confirm HDD inclusion, camera power arrangements, and supplied accessories before purchase.
