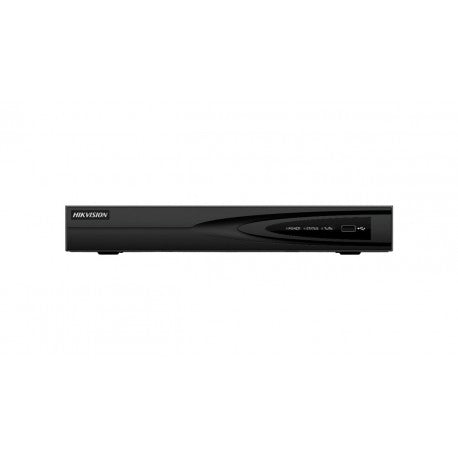

Hikvision DS-7616NI-K1-B 16-Channel 4K Network Video Recorder

16-Channel IP Surveillance in a Compact 1U Recorder

The Hikvision DS-7616NI-K1-B connects up to 16 IP cameras to one network video recorder, with support for 4K high-definition live view, storage, and playback. Centralize feeds from entrances, offices, retail areas, and other monitored spaces, with independent HDMI and VGA video output and single-drive storage support.

Features and Benefits

• Up to 16 IP camera inputs: Plan a multi-camera surveillance installation.
• Video format support: H.265+, H.265, H.264+, and H.264 decoding.
• 4K HDMI: Display output up to 3840 × 2160 at 30 Hz.
• Independent outputs: One HDMI and one VGA interface support independent video output.
• 160 Mbps incoming bandwidth: Plan camera streams within the stated input bandwidth limit.
• Single SATA interface: Supports one HDD up to 6 TB.

Recording and Network Specifications

• IP video input: 16 channels
• Recording resolutions: 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
• Synchronous playback: 16 channels
• Incoming bandwidth: 160 Mbps
• Outgoing bandwidth: 80 Mbps
• Network interface: 1 RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
• Protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS

Video and Audio Interfaces

• HDMI: 3840 × 2160/30 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
• VGA: 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
• Two-way audio input: 1-channel RCA, 2.0 Vp-p, 1 kΩ
• Audio output: 1-channel RCA, linear, 1 kΩ
• USB: 2 USB 2.0 interfaces

Storage and General Specifications

• SATA: 1 interface for 1 HDD
• Disk capacity: Up to 6 TB
• Power supply: 12 VDC
• Consumption without HDD: ≤10 W
• Operating temperature: −10°C to +55°C
• Operating humidity: 10–90%
• Chassis: 1U
• Dimensions (W × D × H): 315 × 240 × 48 mm
• Weight without HDD: ≤1 kg

Before Installation

Camera input count and synchronous playback count are separate from simultaneous decoding capacity, which is not specified in the supplied details. Confirm camera compatibility and decoding requirements before installation. One SATA interface indicates HDD support, not an included hard drive. Confirm HDD inclusion, camera power arrangements, and supplied accessories before purchase.
