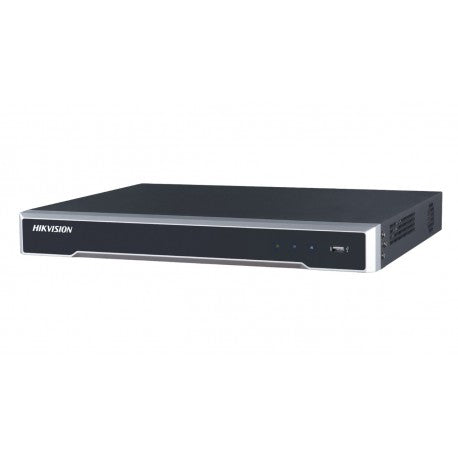

Hikvision DS-7616NI-K2-16P 16-Channel 4K NVR with 16 PoE Ports

16-Channel IP Recording with Built-In PoE

The Hikvision DS-7616NI-K2-16P combines 16 IP camera inputs, 16 Power-over-Ethernet interfaces, and 4K live view, storage, and playback support in a 1U recorder. Bring camera connections from entrances, workspaces, and other monitored areas into one organized surveillance setup, with direct plug-and-play connections for compatible PoE cameras.

Features and Benefits

• 16 IP camera inputs: Centralize a multi-camera surveillance system.
• 16 PoE interfaces: IEEE 802.3af/at support with a supplied PoE power specification of ≤200 W.
• 160 Mbps incoming bandwidth: Accommodate camera streams within the recorder's stated bandwidth limit.
• Decoding options: 2 channels at 8 MP (25 fps), 4 channels at 4 MP (30 fps), or 8 channels at 1080p (30 fps).
• Independent HDMI/VGA output: Supports separate display outputs, including 4K HDMI.
• Dual SATA interfaces: Supports up to 6 TB per HDD.
• Alarm connectivity: 4 alarm inputs and 1 alarm output.

Video and Audio Specifications

• IP video input: 16 channels
• HDMI: 3840 × 2160/30 Hz, 2560 × 1440/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
• VGA: 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
• Incoming bandwidth: 160 Mbps
• Audio output: 1-channel RCA, linear, 1 kΩ
• Two-way audio: 1-channel RCA, 2.0 Vp-p, 1 kΩ

Decoding and Recording

• Formats: H.265 / H.265+ / H.264 / H.264+ / MPEG4
• Decoding: 2-ch @ 8 MP (25 fps) / 4-ch @ 4 MP (30 fps) / 8-ch @ 1080p (30 fps)
• Synchronous playback: 16 channels
• Recording resolutions: 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF

Network, PoE and Auxiliary Interfaces

• Network interface: 1 RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
• Protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
• PoE: 16 interfaces; IEEE 802.3af/at; power ≤200 W
• SATA: 2 interfaces; up to 6 TB per HDD
• RAID: Not supported
• USB: Front panel, 1 USB 2.0; rear panel, 1 USB 3.0
• Alarm input/output: 4/1

General Specifications

• Power supply: 100–240 VAC, 50–60 Hz, 1 A
• Consumption: ≤15 W without enabling PoE
• Operating temperature: −10°C to +55°C
• Operating humidity: 10–90%
• Chassis: 1U
• Dimensions (W × D × H): 385 × 315 × 52 mm
• Weight: ≤3 kg

Installation Notes

Match camera power demands to the supported PoE budget and plan video streams within the incoming bandwidth and decoding limits. Sixteen-channel input and synchronous playback do not mean simultaneous decoding of sixteen 8 MP streams. Two HDD interfaces describe storage support, not included hard drives. Confirm HDD inclusion, compatible cameras, and supplied accessories before purchase.
