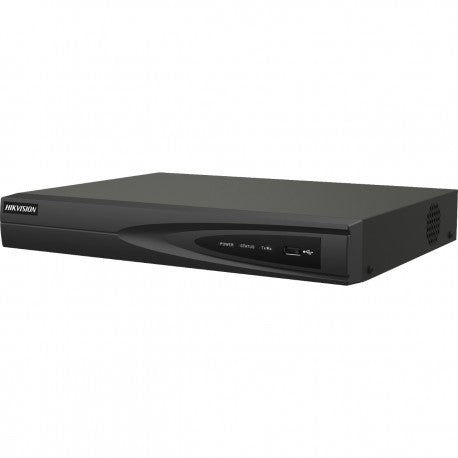

Hikvision DS-7616NI-Q1 16-Channel 4K Network Video Recorder

Centralized Recording for Your IP Camera System

The Hikvision DS-7616NI-Q1 is a 16-channel, 1U, 4K network video recorder for IP-camera surveillance installations. Bring camera feeds from entrances, workspaces, and other monitored areas into one recording system, with support for up to 16 IP camera inputs.

Key Features

• Up to 16 IP camera inputs: Plan a multi-camera surveillance system around a single NVR.
• 4K NVR: A recorder option for high-resolution surveillance installations.
• Multiple video formats: Supports H.265+, H.265, H.264+, and H.264.
• Decoding capacity: Up to 1 channel at 8MP or 5 channels at 1080p.
• Incoming bandwidth: Up to 160 Mbps for incoming camera streams.
• 1U form factor: Low-profile recorder design.

Technical Specifications

• Brand: Hikvision
• Model: DS-7616NI-Q1
• Reference: DS7616NIQ1
• Device type: Network Video Recorder (NVR)
• IP camera inputs: Up to 16 channels
• Video formats: H.265+ / H.265 / H.264+ / H.264
• Decoding: Up to 1-ch @ 8MP or 5-ch @ 1080p
• Incoming bandwidth: Up to 160 Mbps
• Form factor: 1U

System Planning

Choose compatible IP cameras and plan stream settings within the recorder's incoming bandwidth and decoding limits. The 16-channel input capacity is separate from the decoding capacity; it does not mean simultaneous decoding of 16 cameras at 8MP.

Confirm storage configuration, camera compatibility, and supplied accessories before purchase. Hard-drive inclusion, PoE ports, and warranty terms are not specified in this listing.
