Hikvision DS-7616NI-Q2 16-Channel 4K NVR with Dual SATA

16-Channel IP Surveillance with Dual-Drive Storage Support

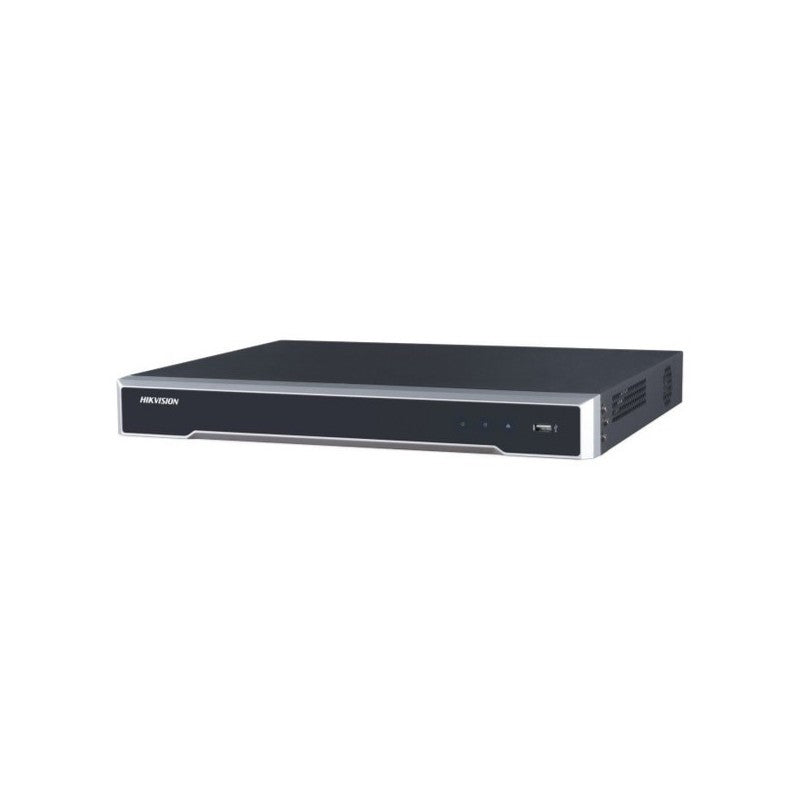

The Hikvision DS-7616NI-Q2 is a 1U network video recorder supporting up to 16 IP cameras at resolutions up to 8 MP. Bring surveillance from entrances, shop floors, offices, and other monitored areas into one recording system, with 4K live view, storage, and playback support.

Features and Benefits

• 16 IP camera inputs: Plan a multi-camera installation with room for up to 16 connected cameras.
• 4K HDMI output: Supports 3840 × 2160 at 30 Hz.
• Independent display outputs: One HDMI and one VGA interface support independent video output.
• Dual SATA storage: Two hard-drive interfaces supporting up to 6 TB per disk.
• Video decoding: H.265+, H.265, H.264+, H.264, and MPEG4 support.
• Third-party camera compatibility: Supports compatible third-party network cameras; confirm individual camera compatibility.
• Gigabit networking: One self-adaptive 10/100/1000 Mbps RJ45 Ethernet interface.

Decoding and Recording

• Decoding capacity: 1 channel at 8 MP or 4 channels at 1080p
• Synchronous playback: 16 channels
• Video and recording resolutions: 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF

Video and Audio Interfaces

• IP video input: 16 channels, up to 8 MP resolution
• HDMI: 1 output; 3840 × 2160/30 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
• VGA: 1 output; 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
• Two-way audio input: 1-channel RCA, 2.0 Vp-p, 1 kΩ
• Audio output: 1-channel RCA, linear, 1 kΩ

Network and Storage

• Ethernet: 1 RJ45 10/100/1000 Mbps self-adaptive interface
• Protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
• USB: 2 USB 2.0 interfaces
• SATA: 2 interfaces
• Disk capacity: Up to 6 TB per disk

General Specifications

• Power supply: 12 VDC; supplied power specification ≤40 W
• Consumption without HDD: ≤15 W
• Operating temperature: −10°C to +55°C
• Operating humidity: 10–90%
• Chassis: 1U
• Dimensions (W × D × H): 385 × 315 × 52 mm
• Weight without hard disk: ≤1.8 kg

Before Ordering

Confirm incoming and outgoing bandwidth against the exact unit's datasheet before selecting camera stream settings. The supplied information contains conflicting bandwidth assignments, so numerical bandwidth claims have been omitted. Sixteen-channel input and playback support do not mean simultaneous decoding of sixteen 8 MP streams. Two SATA interfaces indicate storage support, not included hard drives. Confirm hard-drive inclusion, accessories, and camera compatibility before purchase.
