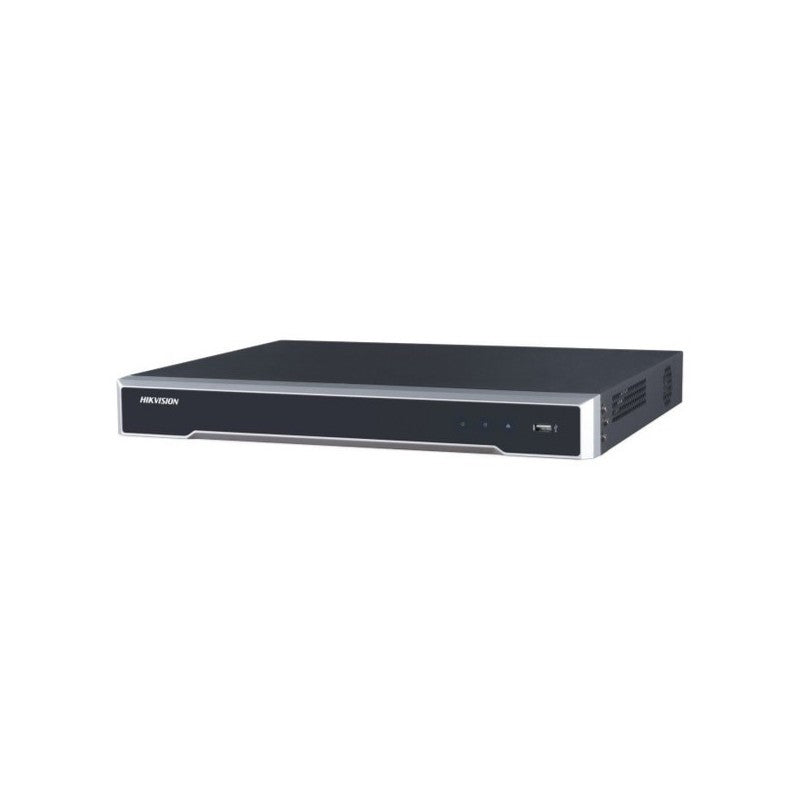

Hikvision DS-7616NI-Q2/16P 16-Channel 4K NVR with 16 PoE Ports

16-Channel Surveillance with Built-In PoE Connectivity

The Hikvision DS-7616NI-Q2/16P combines 16 IP camera inputs with 16 Power-over-Ethernet interfaces in a 1U network video recorder. Connect compatible PoE cameras directly to the recorder for a more organized installation, bringing camera data and power connections together while supporting up to 4K live view, storage, and playback.

Features and Benefits

• 16 camera inputs: Supports IP cameras at resolutions up to 8 MP.
• 16 built-in PoE ports: Plug-and-play connectivity for compatible cameras, with IEEE 802.3af/at support.
• PoE power specification: ≤150 W; plan connected camera loads within the supported power budget.
• 4K HDMI output: Up to 3840 × 2160 at 30 Hz.
• Independent HDMI and VGA outputs: Supports separate video output through both interfaces.
• Dual-drive storage support: Two SATA interfaces, supporting up to 6 TB per disk.
• Third-party network cameras: Supports compatible models; confirm compatibility before installation.

Decoding and Recording

• Formats: H.265 / H.265+ / H.264 / H.264+ / MPEG4
• Decoding capacity: 1 channel at 8 MP or 4 channels at 1080p
• Synchronous playback: 16 channels
• Video and recording resolutions: 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF

Network and PoE Interfaces

• Network interface: 1 RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
• PoE interfaces: 16 RJ45 10/100 Mbps self-adaptive Ethernet ports
• PoE standards: IEEE 802.3af/at
• PoE power: ≤150 W
• USB: 2 USB 2.0 interfaces
• Protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS

Video and Audio

• HDMI: 1 channel; 3840 × 2160/30 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
• VGA: 1 channel; 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
• Two-way audio input: 1-channel RCA, 2.0 Vp-p, 1 kΩ
• Audio output: 1-channel RCA, linear, 1 kΩ

Storage and General Specifications

• SATA: 2 interfaces
• Capacity: Up to 6 TB per disk
• Power supply: 100–240 VAC; supplied power specification ≤280 W
• Consumption without HDD: ≤15 W
• Operating temperature: −10°C to +55°C
• Operating humidity: 10–90%
• Chassis: 1U
• Dimensions (W × D × H): 385 × 315 × 52 mm
• Weight without hard disk: ≤2.6 kg

Installation and Ordering Notes

Sixteen-channel camera input and playback support are distinct from decoding capacity. Observe the stated decoding limits and check camera power requirements against the PoE budget. Two SATA interfaces indicate supported storage connections, not included hard drives.

Confirm incoming and outgoing bandwidth against the exact unit's datasheet before planning camera streams. The supplied feature list and bandwidth specification conflict, so numerical bandwidth claims are omitted. Confirm supplied accessories and hard-drive inclusion before purchase.
