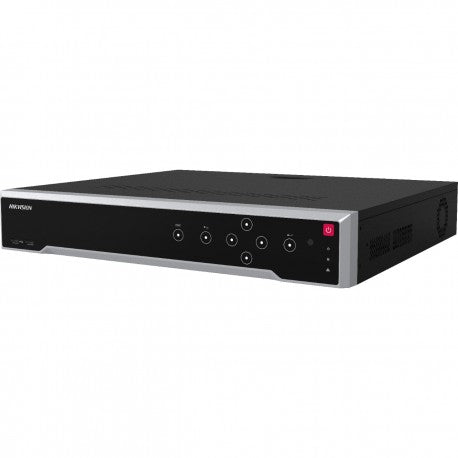

Hikvision DS-7716NI-I4/16P 16-Channel 4K NVR with 16 PoE Ports

16-Channel IP Recording with Built-In PoE and Four-Drive Storage Support

The Hikvision DS-7716NI-I4/16P brings up to 16 IP cameras into one 4K network video recorder, with 16 built-in PoE ports for compatible camera connections. Its 19-inch rack-mounted 1.5U chassis and four SATA interfaces make it a practical recording platform for monitoring entrances, workspaces, retail areas, and other security zones.

Features and Benefits

• 16 IP camera inputs: Supports resolutions up to 12 MP.
• 16 PoE ports: Plug-and-play connectivity for compatible cameras; IEEE 802.3af/at support and PoE power specification ≤200 W.
• Decoding capacity: 2 channels at 12 MP (20 fps), 4 at 8 MP (25 fps), 8 at 4 MP (30 fps), or 16 at 1080p (30 fps).
• Four SATA interfaces: Supports four HDDs, up to 10 TB per disk.
• Special-function camera support: Thermal, fisheye, people-counting, heatmap, and ANPR cameras, subject to compatibility.
• Advanced streaming: Supports smooth live view and data self-correction in poor network conditions.
• Dual-stream recording: Supported for workflows intended to save time and bandwidth.

Video, Audio and Recording

• IP input: 16 channels, up to 12 MP
• Incoming bandwidth: 160 Mbps
• Outgoing bandwidth: 256 Mbps
• HDMI 1 resolutions: 3840 × 2160/60 Hz, 3840 × 2160/30 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
• VGA: 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
• CVBS: 1-channel BNC, 1.0 Vp-p, 75 Ω; PAL 704 × 576, NTSC 704 × 480
• Audio output: 1-channel RCA, linear, 1 kΩ
• Two-way audio: 1-channel RCA, 2.0 Vp-p, 1 kΩ, using audio input
• Stream types: Video; Video & Audio
• Audio compression: G.711ulaw / G.711alaw / G.722 / G.726
• Video decoding formats: H.265 / H.265+ / H.264 / H.264+ / MPEG4
• Synchronous playback: 16 channels
• Recording resolutions: 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF

Version-Specific Display Outputs

Only the (B) version is specified as supporting two HDMI interfaces and one VGA interface with independent HDMI video output. Confirm the supplied hardware revision before purchase. For the supported two-HDMI configuration, HDMI 2 resolutions are 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, and 1024 × 768/60 Hz. The supplied output-mode specification lists HDMI1/VGA simultaneous output and HDMI2/VGA independent output.

Network, PoE and Storage Interfaces

• Network: 1 RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
• Remote connections: 128
• Protocols: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
• PoE: 16 RJ45 10/100 Mbps self-adaptive interfaces; IEEE 802.3af/at; power ≤200 W
• SATA: 4 interfaces for 4 HDDs; up to 10 TB per disk
• eSATA: 1 interface, optional
• Serial: 1 RS-485 half-duplex and 1 RS-232
• USB: Front, 2 USB 2.0; rear, 1 USB 3.0
• Alarm input/output: 16/4; 16/8 optional

General Specifications

• Power supply: 100–240 VAC, 50–60 Hz
• Consumption: ≤20 W without HDD and with PoE off
• Operating temperature: −10°C to +55°C
• Operating humidity: 10–90%
• Chassis: 19-inch rack-mounted 1.5U
• Dimensions (W × D × H): 440 × 387 × 75 mm
• Weight without HDD: ≤5 kg

Listed Certification Standards

• FCC: Part 15 Subpart B; ANSI C63.4-2014
• CE: EN 55032:2015; EN 61000-3-2; EN 61000-3-3; EN 50130-4

Ordering and Installation Notes

Confirm hardware revision, camera compatibility, optional interfaces, and included accessories. Four SATA interfaces indicate storage support, not included HDDs. Match camera power requirements to the PoE budget and respect the separate input, decoding, and playback limits.
