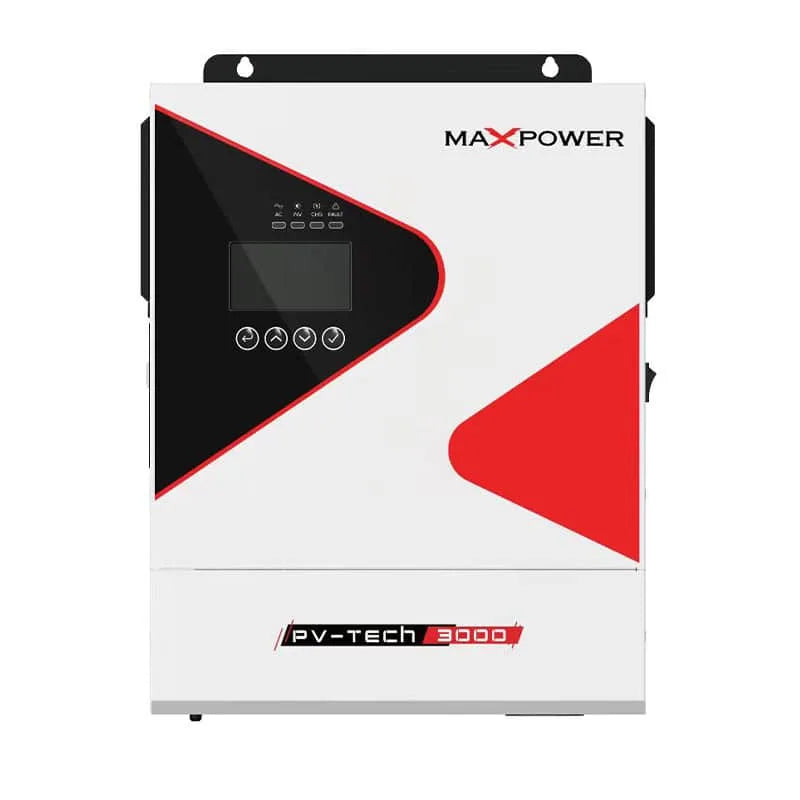

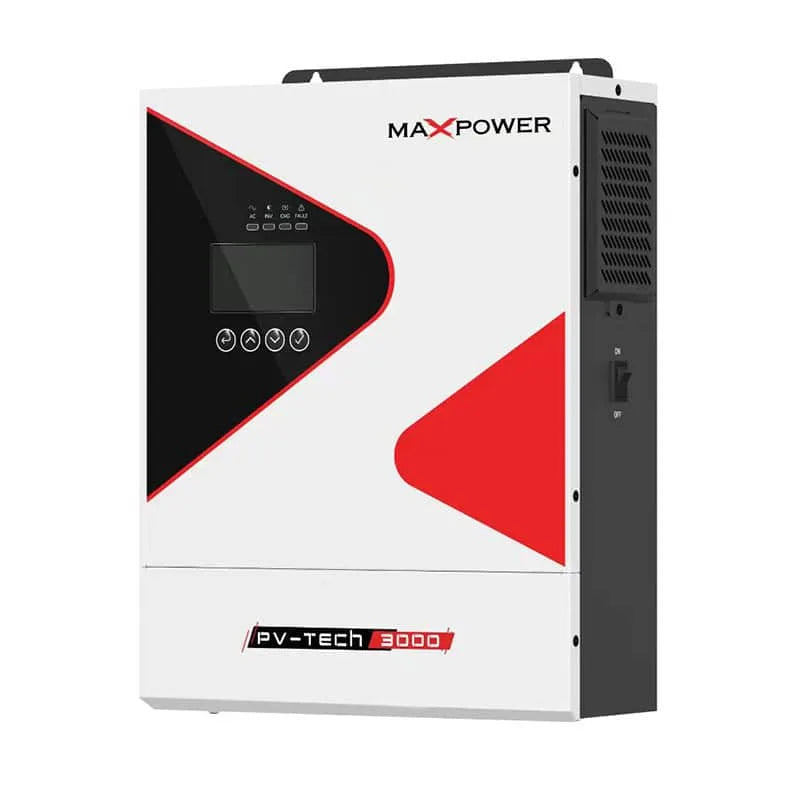

Max Power PV Tech 3000 3kW Solar Inverter with MPPT
Max Power PV Tech 3000 3kW Solar Inverter with MPPT
Couldn't load pickup availability
Solar and Battery Backup for Homes and Small Businesses
The Max Power PV Tech 3000 is a 3kW solar inverter designed for appropriately sized home, shop and small-office power systems. Pure sine wave output, a built-in MPPT charge controller and battery-management functions bring solar charging and backup power management into one unit.
Plan a system around the appliances you need during load shedding, rather than assuming every appliance can run together. Backup availability depends on compatible batteries, their state of charge, connected loads and the installation configuration.
Key Features
- 3kW rated output
- Pure sine wave output
- Built-in MPPT solar charge controller
- Up to 3000W PV input capacity
- Specified MPPT range: 30–400V
- Compatible lithium-ion and lead-acid battery options, subject to settings and manufacturer approval
- Automatic battery-backup switching
- Front-panel display and operating controls
Technical Specifications
| Parameter | Value |
|---|---|
| Brand | Max Power |
| Model | PV Tech 3000 |
| Rated output | 3kW |
| Output waveform | Pure sine wave |
| Maximum PV input capacity | 3000W |
| MPPT voltage range, supplied specification | 30–400V |
| Input voltage range, supplied specification | 170–264V |
| Conversion efficiency, supplied specification | 91% |
| Surge capacity, supplied specification | 4kVA |
| Battery options | Compatible lithium-ion, AGM and gel batteries |
| Communication interfaces listed | RS232 / RS485 / CAN |
| Ingress protection | IP21 |
Frequently Asked Questions
How many solar panels can I connect?
The supplied maximum PV input capacity is 3000W. Panel quantity and string layout also depend on panel open-circuit voltage, temperature effects and inverter input-current limits. Have an installer check the exact datasheet before connecting the array.
Can it supply backup power during load shedding?
It supports automatic battery-backup switching with a suitable installation and available battery energy. This is not a guarantee of uninterrupted power for every appliance.
Can I use lithium or lead-acid batteries?
Compatible lithium-ion, AGM and gel options are listed. Confirm battery voltage, charging settings and BMS communication requirements for the specific battery model; not every battery is automatically compatible.
Can it start an air conditioner or water pump?
A 4kVA surge figure alone does not establish appliance compatibility. Check starting demand, running load and the inverter's surge duration with a qualified installer.
Indoor Installation
Install indoors in a dry, ventilated location according to the manufacturer instructions. IP21 is not a dustproof or outdoor-weatherproof rating. Maintain ventilation clearance and protect the unit from dust accumulation and water exposure.
Installation must be performed by a qualified professional with suitable wiring, protection and earthing. Confirm exact model specifications, supplied communication accessories and manufacturer warranty terms before purchase.
