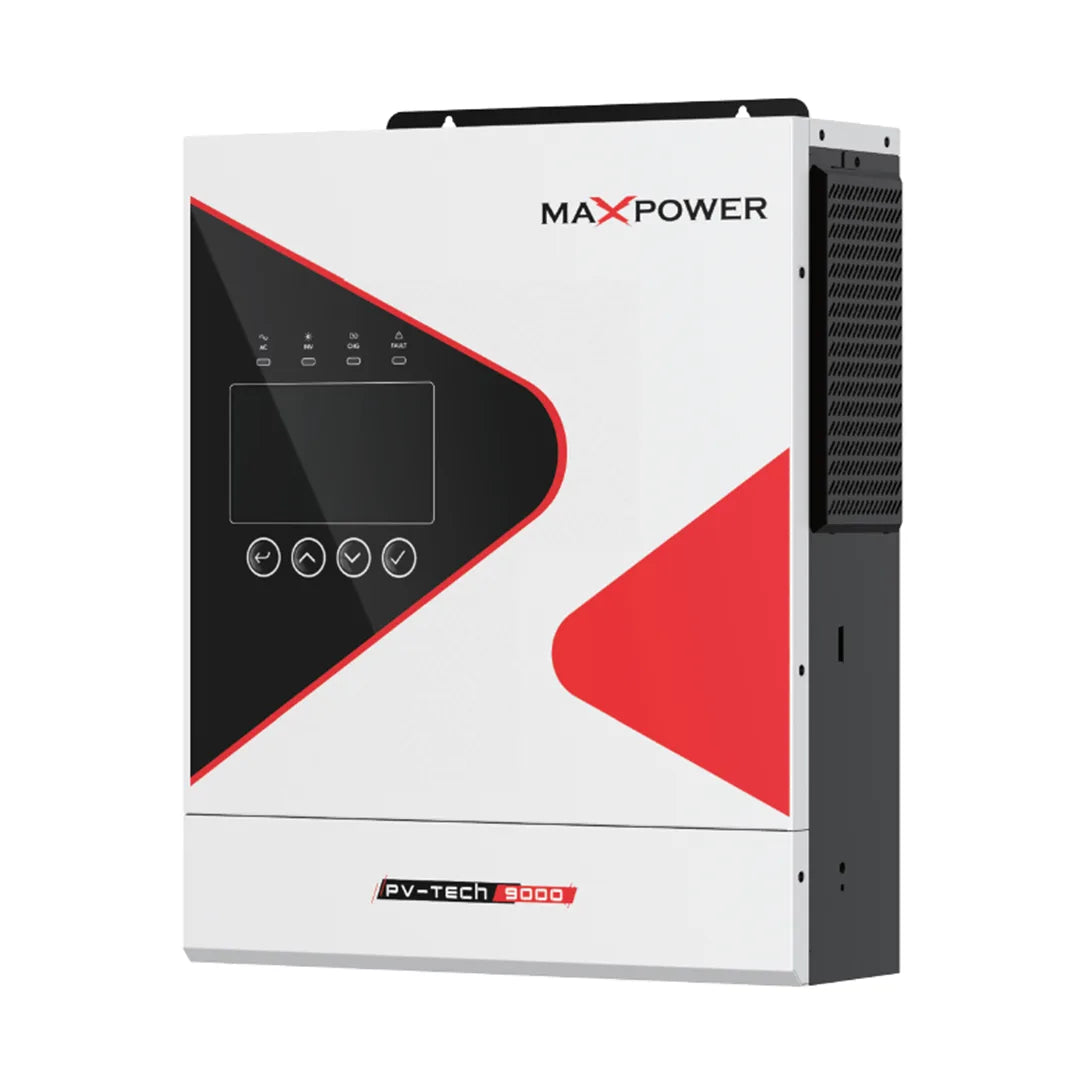

Max Power PV Tech 9000 6kW Solar Inverter

6kW Solar Power with Flexible Battery Storage

The Max Power PV Tech 9000 combines a 6kW rated output with up to 9000W PV input capacity for appropriately designed home, office and small commercial solar systems. Pure sine wave output, MPPT solar charging and compatible 48V battery storage support practical energy management and backup for selected loads.

Technical Specifications

• Model: PV Tech 9000
• Rated output power: 6kW
• Surge capacity: 12kVA
• Output waveform: pure sine wave
• PV input power: 9000W
• MPPT operating voltage range: 60–450VDC
• Battery system: 48V
• Battery compatibility: compatible lithium-ion and lead-acid batteries, including AGM and gel subject to supported charging settings
• Local interface: LCD
• Communication interfaces: RS485, RS232 and USB
• Wi-Fi: optional internal or external connectivity
• Ingress protection: IP21
• Operating temperature range: −10°C to +50°C
• Dimensions: 410 × 334 × 110mm, as supplied

Understand the Power Ratings

The PV Tech 9000 model name and 9000W PV input rating do not mean 9kW continuous AC output. The supplied technical specifications state 6kW rated output. Its 12kVA surge capacity is a short-term rating, not continuous output; confirm permitted surge duration and appliance starting requirements in the exact model datasheet.

Battery Management and Monitoring

Pair the inverter with a compatible 48V battery bank to store energy for later use. Match charging parameters, battery protection settings and any communication requirements to the selected battery manufacturer's guidance. Batteries are not stated as included.

The LCD provides local access to operating information. RS485, RS232 and USB interfaces support compatible monitoring or communication equipment. Wi-Fi is optional; confirm the required accessory, supported software and whether equipment is included before purchase.

Installation Environment

IP21 is not an outdoor weatherproof rating. Install in a suitable sheltered location according to manufacturer requirements, away from rain, water jets and excessive dust. The supplied temperature range does not guarantee full rated output at every temperature; follow ventilation and derating guidance.

Frequently Asked Questions

What is the power capacity of the PV Tech 9000?
The supplied technical details specify 6kW rated output with up to 9000W PV input capacity and 12kVA surge capability. PV input power and continuous output are different ratings.

Can it help reduce electricity bills?
Solar generation and stored energy can offset some grid consumption. Savings depend on sunlight, load demand, tariffs and system settings, rather than a guaranteed reduction.

Does it support lithium batteries?
It supports compatible 48V lithium-ion and lead-acid battery systems. AGM and gel options require appropriate supported charging settings. Confirm exact battery compatibility and communication requirements before purchase.

Is it suitable for load shedding?
A correctly configured compatible battery system can support selected loads during outages. Runtime depends on usable battery capacity and connected loads. Transfer behaviour and backup ratings must be checked; continuous uninterrupted operation is not guaranteed.

Why choose this inverter?
It combines 6kW rated output, pure sine wave power, MPPT charging, flexible battery support and multiple communication interfaces for appropriately sized solar installations.

Professional Installation

Verify the exact model datasheet for maximum PV open-circuit voltage, string-current limits, charging currents, battery settings, surge duration and protection functions before installation. The MPPT operating range alone does not establish safe cold-weather string voltage. Do not assume net-metering or grid-export capability from solar and battery support alone.
