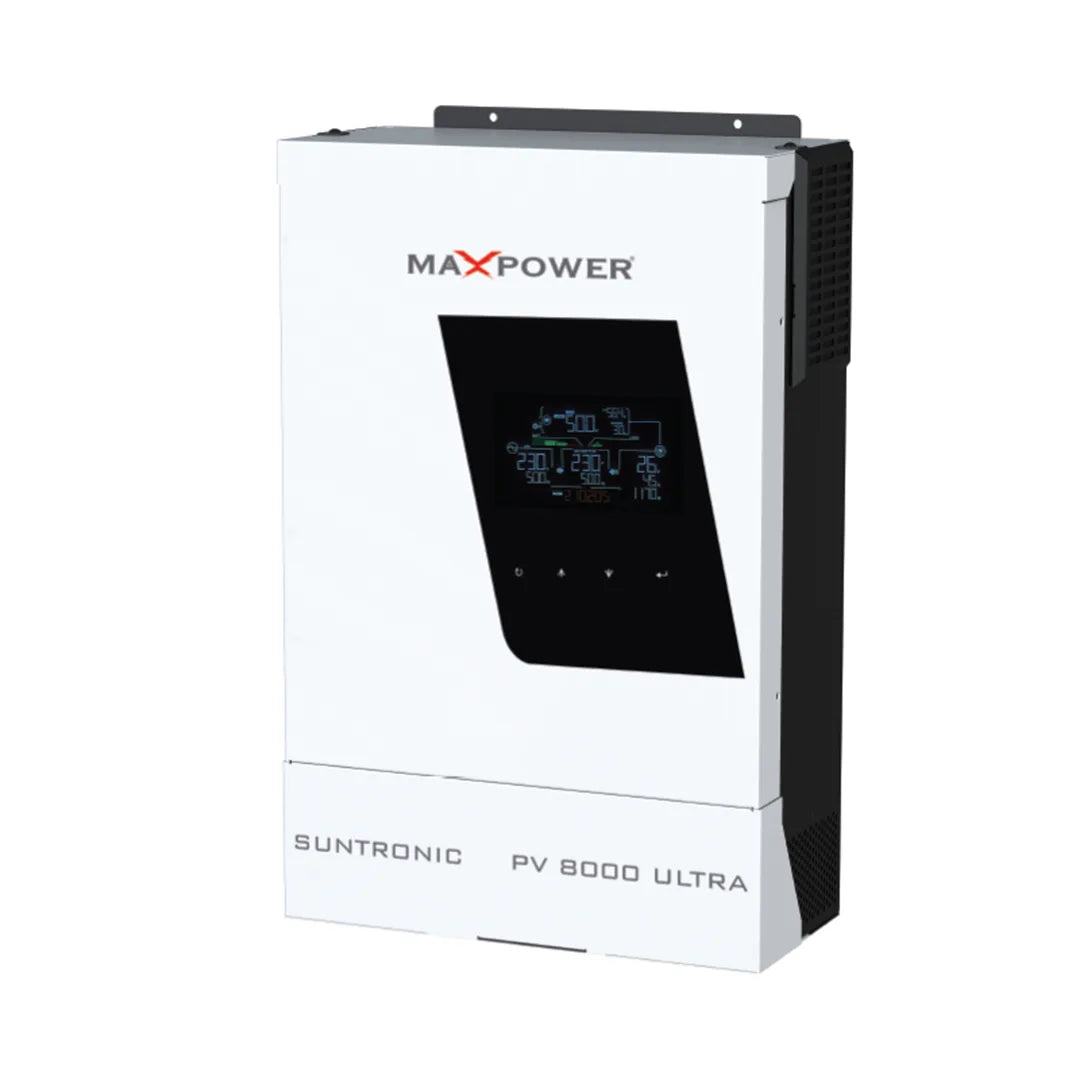

Max Power Suntronic PV 8000 Ultra 6.2kW Solar Inverter
Max Power Suntronic PV 8000 Ultra 6.2kW Solar Inverter
Couldn't load pickup availability
6.2kW Solar Power with Expandable System Options
The Max Power Suntronic PV 8000 Ultra combines 6,200W rated output with up to 8,000W PV input capacity for appropriately designed home and small-commercial solar installations. The model name refers to PV 8000 Ultra; its supplied continuous output rating is 6.2kW, not 8kW.
A single MPPT tracker with a 120–430V DC operating window supports solar-array management, while pure sine wave output provides an option for compatible household and office loads. System sizing should account for both running demand and appliance starting requirements.
Key Features
- 6,200W rated output
- 8,000W maximum PV input power
- One MPPT tracker
- 120–430V DC MPPT voltage range
- 27A maximum PV input current
- Pure sine wave output
- 93% DC-to-AC conversion efficiency, supplied specification
- Parallel operation of up to 9 compatible units, subject to approved configuration
- USB, RS232, RS485, WiFi and dry-contact options listed
Technical Specifications
| Parameter | Value |
|---|---|
| Brand | Max Power |
| Model | Suntronic PV 8000 Ultra |
| Rated output power | 6,200W |
| Maximum PV input power | 8,000W |
| MPPT voltage range | 120–430V DC |
| MPPT trackers | 1 |
| Maximum PV input current | 27A |
| Acceptable AC input voltage ranges | 90–280V AC or 170–280V AC, depending on configured mode |
| Maximum AC input current | 40A |
| Output waveform | Pure sine wave |
| DC-to-AC conversion efficiency, supplied specification | 93% |
| Dimensions, supplied order | 140 × 295 × 468 mm |
| Weight | 12kg |
| Parallel operation | Up to 9 compatible units |
| Communication and control options listed | USB / RS232 / RS485 / WiFi / dry contact |
| Operating temperature | -10°C to +50°C |
| Relative humidity | 0–90%, non-condensing |
Frequently Asked Questions
Is this an 8kW output inverter?
No. The supplied rated output is 6,200W. The 8,000W figure is maximum PV input power, which is separate from AC output capacity.
Can it work with lithium batteries?
Lithium battery integration is listed for this model. Confirm the approved battery voltage, model, BMS protocol and charging settings before connection; not every lithium battery is compatible.
Can the system be expanded?
The supplied specification supports parallel operation of up to nine compatible units. An installer must verify parallel accessories, firmware, wiring and the manufacturer's approved arrangement.
Can it help reduce grid consumption?
A correctly designed system can use available solar energy to reduce reliance on grid electricity. Actual savings depend on solar generation, consumption, tariffs and system settings; a fixed reduction is not guaranteed.
Installation and Backup Planning
Have a qualified solar professional confirm string open-circuit voltage, current limits, battery compatibility, load sizing and the exact datasheet before installation. The MPPT operating window is not a substitute for checking maximum permissible PV voltage.
Follow manufacturer requirements for ventilation, placement and temperature derating. Backup performance depends on system configuration and stored battery energy. Communication options do not establish that every accessory is included, and uninterrupted operation for every appliance is not guaranteed.
