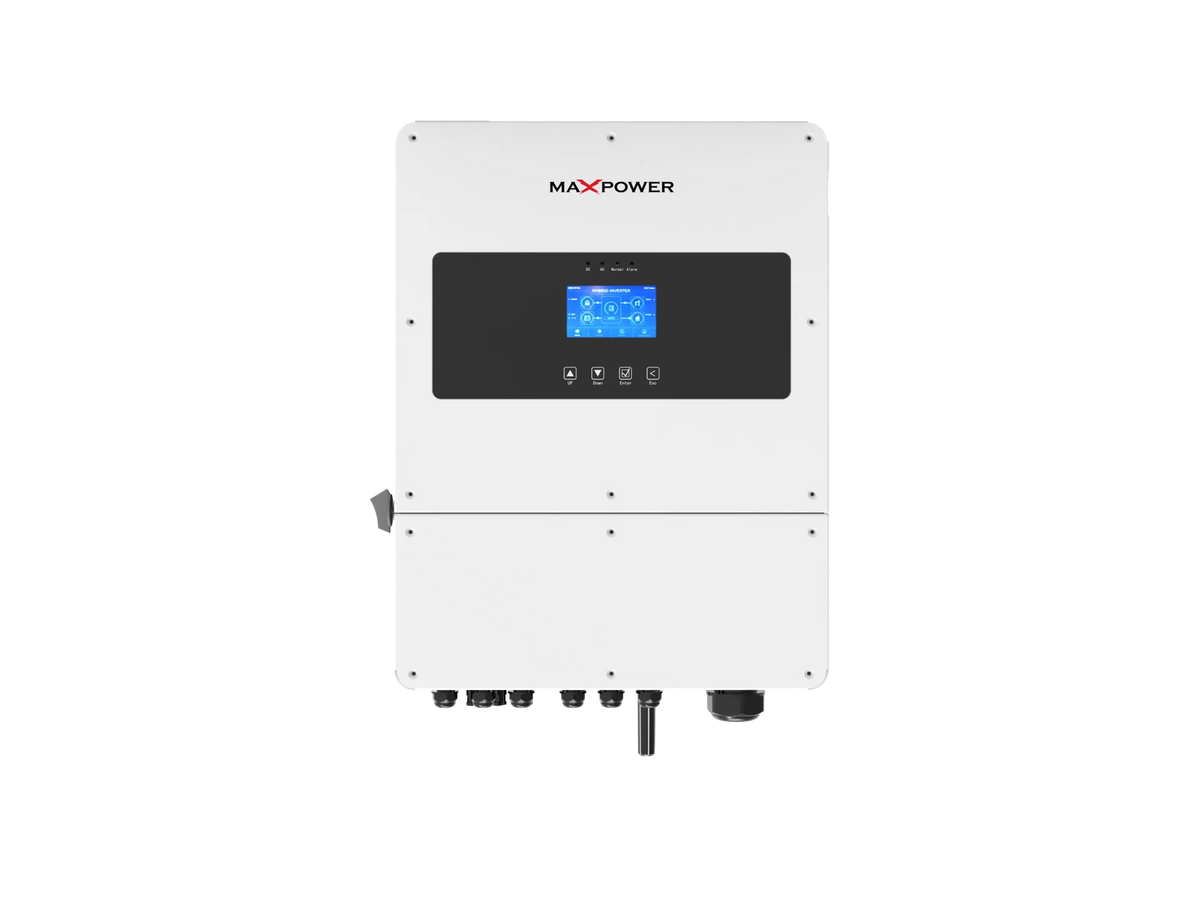

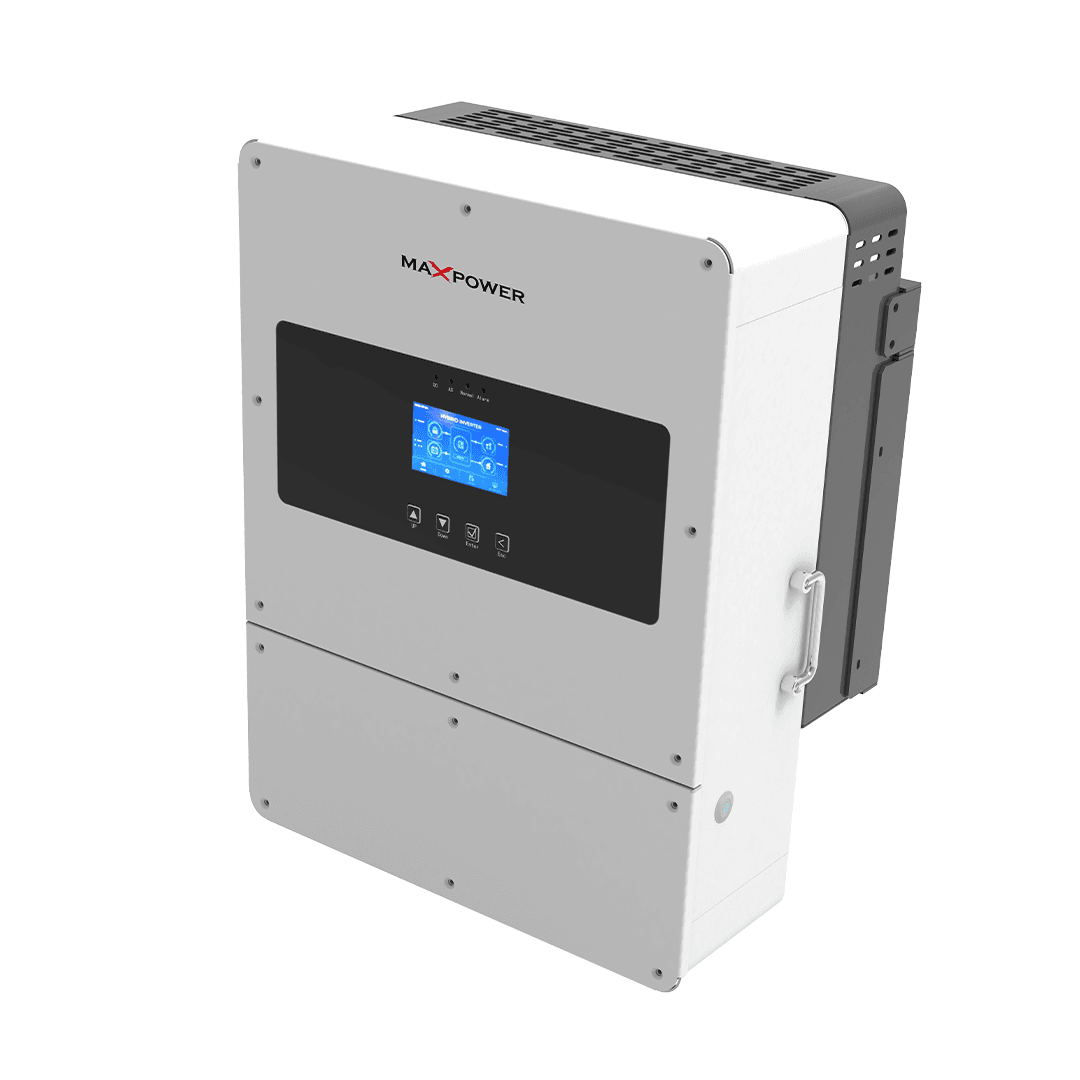

Max Power Voltas 10K-H4 10kW Single-Phase Hybrid Solar Inverter

10kW Hybrid Power with Dual MPPT Solar Management

The Max Power Voltas 10K-H4 Single-Phase Hybrid Inverter combines 10,000W AC output with support for up to 15,000W PV input. Designed for residential and suitable small commercial solar installations, it brings solar generation, compatible battery storage and energy monitoring together in one system.

Technical Specifications

• Model: Voltas 10K-H4
• Configuration: single-phase hybrid inverter
• AC output capacity: 10,000W
• PV input power: 15,000W
• MPPT operating voltage range: 150–425V
• MPPT trackers: 2
• Short-circuit current limit: up to 34A per input, as supplied
• Peak power capability: 1.8 times rated power, subject to model-specific operating conditions
• Battery support: compatible lithium-ion and lead-acid batteries
• Maximum charging current: 210A
• Maximum discharging current: 210A
• Lithium battery management: self-adapting BMS support for compatible batteries
• Maximum conversion efficiency: 97.9%
• Protection: PV lightning protection, as supplied
• Monitoring: remote monitoring support through compatible connectivity equipment

Solar Input and Battery Flexibility

Dual MPPT trackers allow separate solar strings to be managed for energy harvesting within the inverter's input limits. The 15kW PV input rating is separate from its 10kW AC output capacity and does not mean 15kW continuous AC output. Confirm string voltage, operating current and cold-weather open-circuit voltage before connecting your panels.

Compatible lithium-ion and lead-acid batteries provide options for energy storage. The 210A maximum charge and discharge ratings must be matched to the battery bank's capabilities and manufacturer settings. BMS communication compatibility must be checked for the selected lithium battery.

Monitoring and System Protection

Remote monitoring support helps you review system operation when the required connectivity equipment and network connection are configured. Confirm the supported monitoring accessories and whether they are included before purchase. PV lightning protection supports electrical protection but does not guarantee immunity to lightning or replace proper surge protection and earthing.

Frequently Asked Questions

What makes the Voltas 10K-H4 suitable for solar energy systems?
It combines 10kW AC output, up to 15kW PV input, dual MPPT tracking and compatible battery storage for single-phase energy management.

Does it support lithium batteries?
Yes, it supports compatible lithium-ion batteries with BMS integration, as well as lead-acid batteries. Confirm supported battery models, communication protocols and settings with your installer.

Can it work during load shedding?
A compatible battery system and correctly configured backup circuit can support selected loads during outages. Available backup power and runtime depend on battery capacity, connected loads and the inverter's backup operating limits. Uninterrupted supply is not guaranteed.

Is it suitable for homes, offices and shops?
It can suit appropriately designed single-phase residential and small commercial installations. Load assessment is necessary, particularly for motors, pumps and appliances with high starting currents.

Does the peak rating mean continuous higher output?
No. The supplied peak capability is 1.8 times rated power, not a continuous output rating. Peak duration and conditions must be confirmed in the exact model datasheet.

Installation Notes

Professional installation is recommended. Confirm model-specific PV limits, battery voltage requirements, backup ratings, peak duration, monitoring accessories and protection requirements before purchase. Grid-connected operation must comply with applicable utility and regulatory requirements.
