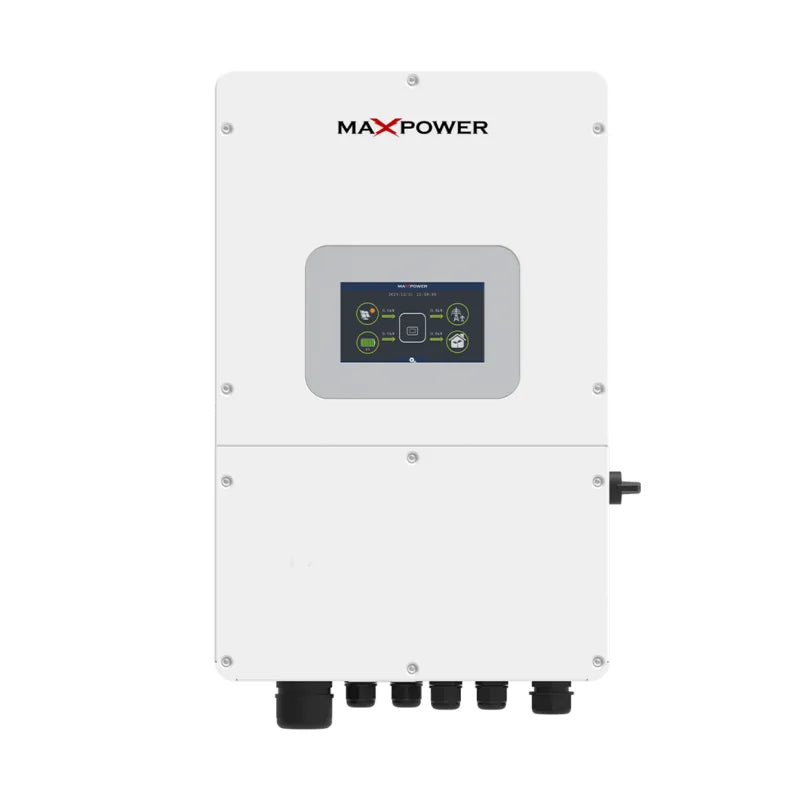

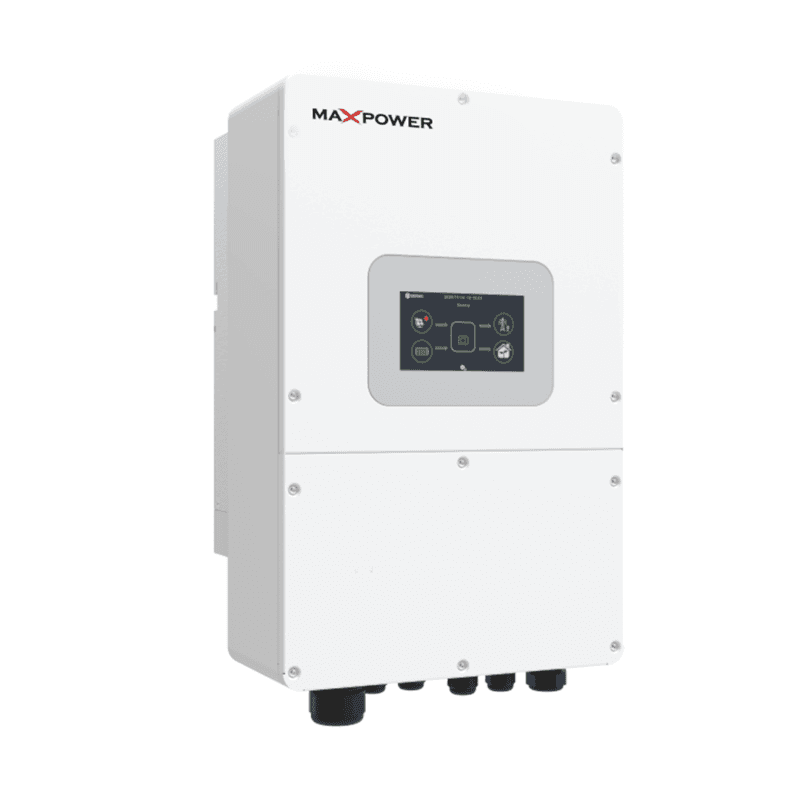

Max Power Voltas 6K-H4 Single-Phase Hybrid Solar Inverter

Flexible Solar Power and Battery Management

The Max Power Voltas 6K-H4 Single-Phase Hybrid Inverter brings solar generation and battery management together for residential and suitable commercial installations. Its support for lead-acid and compatible lithium-ion batteries gives you flexibility when designing a solar energy storage system.

Key Features

• Single-phase hybrid inverter configuration
• Supports lead-acid and compatible lithium-ion batteries
• 40–60V battery operating range
• Maximum charging current: 140A
• Maximum discharging current: 140A
• 3-stage charging curve for battery management
• Optional external temperature sensor for charging temperature monitoring
• Integrated PV arc-fault detection and output overvoltage protection
• Maximum efficiency: 97.90%
• IP65-rated enclosure for dust and water-jet protection

Designed for Your Solar Setup

Pair the inverter with a correctly sized solar array and compatible battery bank to manage solar energy and stored power around your property's needs. Battery settings, charge limits and installation design should be matched to the battery manufacturer's requirements. The optional temperature sensor is not stated as included.

Frequently Asked Questions

Is it suitable for home solar systems?
It is designed for single-phase residential and suitable commercial solar applications. A qualified installer should assess your loads, solar array and battery requirements before installation.

Does it support lithium battery backup?
It supports compatible lithium-ion batteries within its 40–60V operating range. Battery communication compatibility and backup wiring must be confirmed for the selected battery. Backup duration depends on usable battery capacity and connected loads.

Can it be used for net metering in Pakistan?
Any grid-connected or net-metering installation requires confirmation of model-specific compliance, local utility approval and applicable regulations. Approval is not automatic.

Does IP65 mean the inverter is waterproof?
No. IP65 indicates protection against dust and water jets, not immersion. Install it in accordance with the manufacturer's placement, ventilation and environmental requirements.

Installation and Compatibility

Professional installation is recommended. Confirm the exact model datasheet, solar input limits, battery compatibility, protection requirements and backup configuration before purchase. The specifications above are based on the supplied product information; charging and discharging currents are maximum ratings, not guaranteed continuous operating values in every setup.
