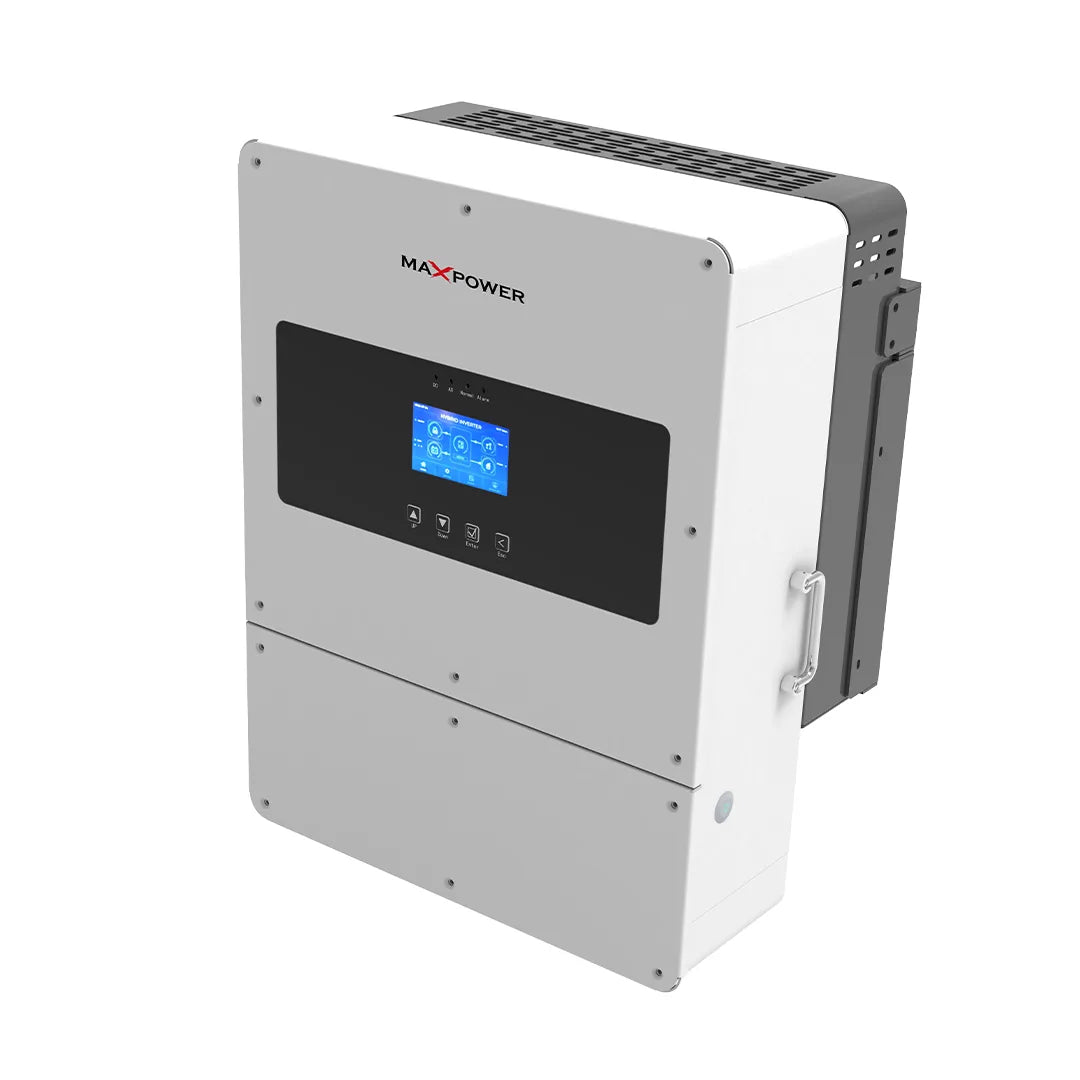

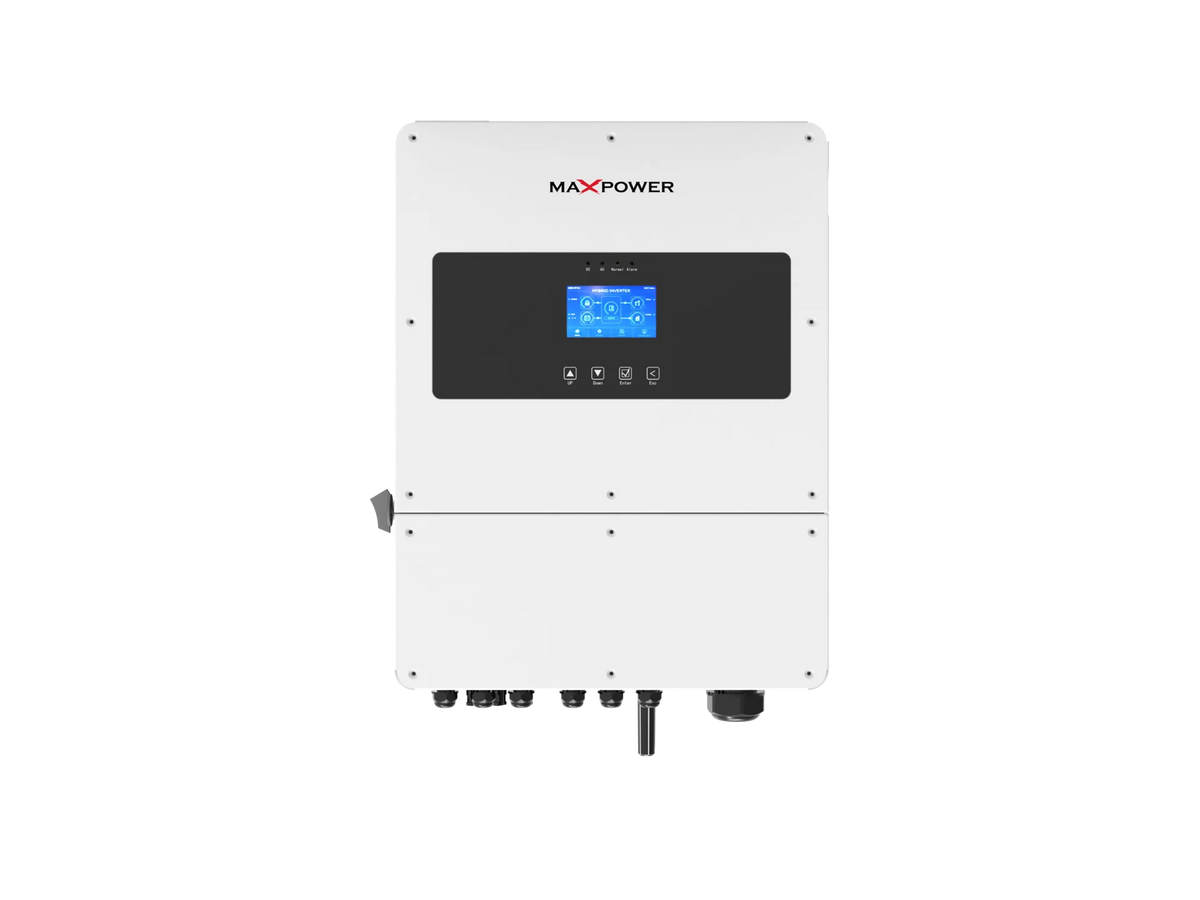

Max Power Voltas 8K-H4 8kW Single-Phase Hybrid Solar Inverter

8kW Hybrid Solar Power for Single-Phase Systems

The Max Power Voltas 8K-H4 Single-Phase Hybrid Inverter combines solar energy utilization with battery management for residential and suitable commercial installations. With support for lead-acid and compatible lithium-ion batteries, it offers flexibility when planning an energy storage system for your property.

Technical Specifications

• Model: Voltas 8K-H4
• Power class: 8kW
• Configuration: single-phase hybrid inverter
• Battery types: lead-acid and compatible lithium-ion
• Battery operating voltage: 40–60V
• Maximum charge current: 140A
• Maximum discharge current: 140A
• Charging curve: 3-stage
• External temperature sensor: optional
• Maximum efficiency: 97.90%
• Enclosure protection: IP65
• Safety features: integrated PV arc-fault detection and output overvoltage protection

Flexible Battery Management

Use a compatible battery bank to store solar energy for later use. The inverter's 3-stage charging curve supports battery management, while an optional external temperature sensor can assist temperature-aware charging. Battery settings and current limits must be matched to the battery manufacturer's requirements. The optional sensor is not stated as included.

Protection for Your Solar Installation

Integrated PV arc-fault detection and output overvoltage protection support system safety. The IP65-rated enclosure provides protection against dust and water jets, but does not permit immersion or replace proper installation, ventilation and electrical protection.

Frequently Asked Questions

Is the Voltas 8K-H4 suitable for a home solar system?
It is designed for single-phase residential and suitable commercial applications. A qualified installer should check the property's peak loads, starting currents, solar array and battery requirements.

Does it support lithium battery storage?
Yes, it supports compatible lithium-ion batteries within its 40–60V operating range. Confirm battery communication compatibility and supported settings for your chosen battery before installation.

Can it provide power during load shedding?
A properly configured compatible battery and backup circuit can support selected loads. Backup duration and power depend on the battery bank, connected loads and model-specific operating limits.

Can it be used for net metering in Pakistan?
Grid-connected and net-metering use requires confirmation of model-specific compliance, local utility approval and applicable regulations. Approval is not automatic.

Why choose this model?
It combines single-phase hybrid operation, two supported battery chemistries, 140A maximum charging and discharging, 97.90% maximum efficiency and an IP65 enclosure in one solar energy management solution.

Installation Notes

Professional installation is recommended. Confirm the exact model datasheet for solar input limits, output and backup ratings, battery compatibility, earthing and protection requirements before purchase. Maximum efficiency and current figures are rated limits, not guaranteed operating values in every setup.
