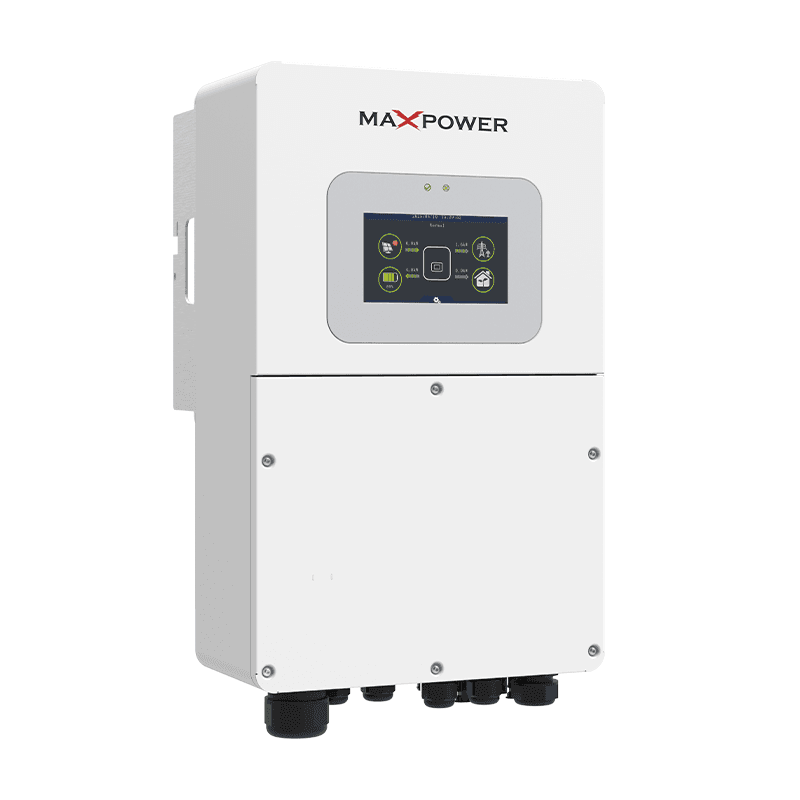

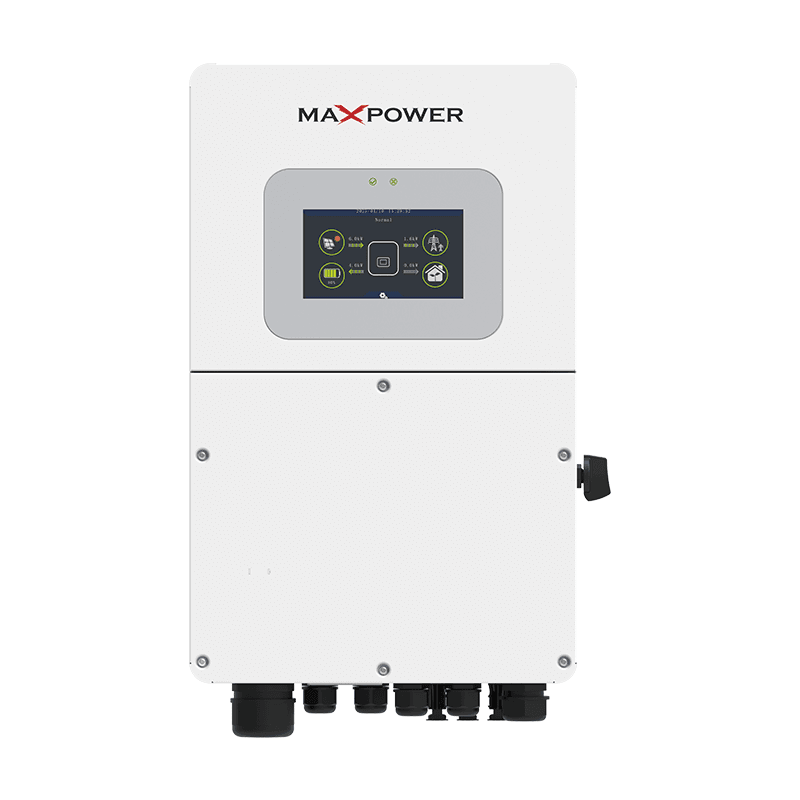

Max Power Voltas HYD-10K-H6 10kW Single-Phase Hybrid Inverter
Max Power Voltas HYD-10K-H6 10kW Single-Phase Hybrid Inverter
Couldn't load pickup availability
10kW Hybrid Power for Solar and Battery Systems
The Max Power Voltas HYD-10K-H6 is a single-phase hybrid inverter for appropriately designed residential and commercial installations. With 10,000W rated AC output, dual-output capability and support for on-grid and off-grid configurations, it brings solar generation and compatible battery storage into one power-management system.
Its specified 15,000W maximum DC input power allows solar-array planning beyond the rated AC output, subject to the exact model's voltage, current and string limits. The 40–60V battery range supports compatible lead-acid and lithium-ion systems.
Key Features
- 10kW rated AC output
- Single-phase hybrid configuration
- Dual-output capability
- On-grid and off-grid operating options
- Up to 15,000W DC input power
- 40–60V battery operating range
- Maximum charge and discharge current: 200A
- 3-stage charging curve
- Optional external temperature sensor support
- 100V startup voltage
Technical Specifications
| Parameter | Value |
|---|---|
| Brand | Max Power |
| Product line | Voltas |
| Model designation | HYD-10K-H6 |
| Type | Single-phase hybrid inverter |
| Rated AC output | 10,000W |
| Off-grid peak apparent power | 11,000VA for 10 seconds |
| Maximum DC input power | 15,000W |
| PV input voltage, supplied specification | 600V; confirm its voltage-limit classification in the exact datasheet |
| Startup voltage | 100V |
| Battery voltage range | 40–60V |
| Maximum charge current | 200A |
| Maximum discharge current | 200A |
| Battery types | Compatible lead-acid and lithium-ion |
| Charging strategy | 3-stage charging curve |
| Temperature sensor | Optional external sensor |
Frequently Asked Questions
Is it suitable for large homes and commercial systems?
The 10kW rated output makes it an option for installations whose electrical requirements match the inverter. Have a qualified installer assess continuous loads, starting demands, battery sizing and output allocation.
Can it work with lithium or lead-acid batteries?
Compatible batteries within the 40–60V range are supported. Confirm the exact battery model, BMS protocol, charging settings and current limits before connection. The 200A inverter rating does not override a battery's lower current limit.
Can it provide backup during load shedding?
Backup is possible in a correctly configured system with available battery energy. Duration depends on battery capacity and load consumption; uninterrupted operation for every appliance is not guaranteed.
How should the solar array be configured?
Use the manufacturer's model-specific voltage, current and string limits alongside the supplied 15kW maximum DC input figure. Confirm the number of independent MPPT trackers and supported strings from the exact datasheet before installation.
Installation and Model Verification
Installation and commissioning should be performed by a qualified solar professional with appropriate protection, cable sizing and earthing. Confirm the exact model suffix, including whether the unit is a PRO version, on the product nameplate or manufacturer datasheet. Optional temperature sensors are not assumed to be included.
