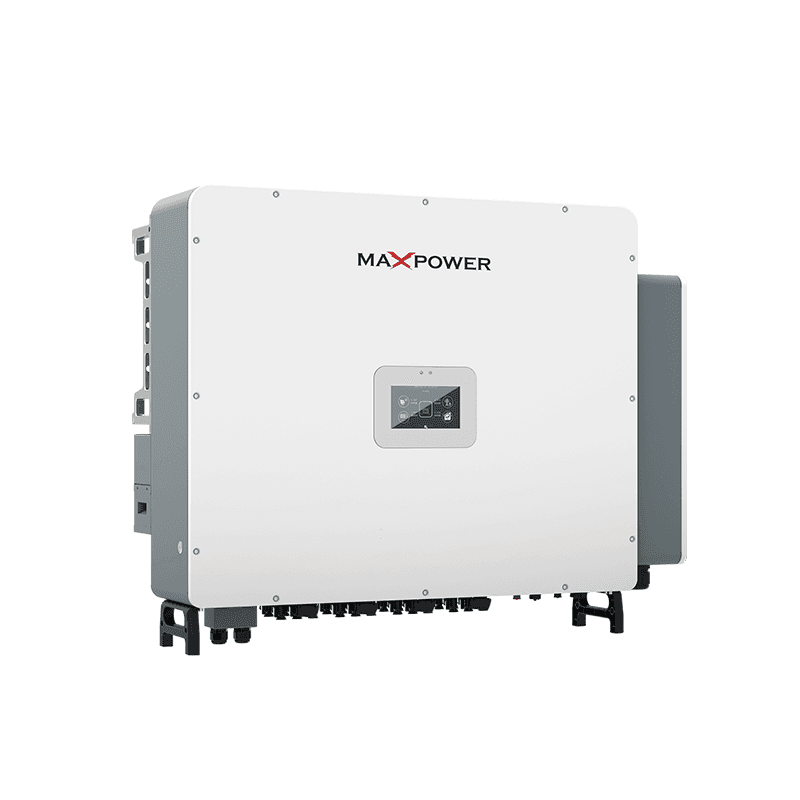

Max Power Voltas HYD-125K-H6 125kW High-Voltage Hybrid Inverter
Max Power Voltas HYD-125K-H6 125kW High-Voltage Hybrid Inverter
Couldn't load pickup availability
125kW Hybrid Power for Commercial and Industrial Solar Projects
The Max Power Voltas HYD-125K-H6 is a high-voltage hybrid inverter for professionally designed factory, warehouse and commercial solar installations. Its supplied 125kW rated output and 190kW maximum DC input power provide a basis for large-scale solar and battery-storage planning.
Eight independent MPPT trackers allow multiple solar-array groups to be managed separately, subject to the exact input-voltage, current and string limits. Compatible high-voltage lithium-ion battery integration can support site energy management and selected backup loads.
Key Features
- 125kW rated output
- 190kW maximum DC input power
- 8 independent MPPT trackers
- Compatible lithium-ion battery support
- 200–800V battery voltage range
- IP66 enclosure rating
- Under-20ms switching time, supplied specification
- Hybrid solar, grid and battery integration
Technical Specifications
| Parameter | Value |
|---|---|
| Brand | Max Power |
| Product line | Voltas |
| Model | HYD-125K-H6 |
| Type | High-voltage hybrid inverter |
| Rated output | 125kW |
| Maximum DC input power | 190kW |
| Independent MPPT trackers | 8 |
| Battery type | Compatible lithium-ion systems |
| Battery voltage range | 200–800V |
| Switching time, supplied specification | Under 20ms |
| Ingress protection | IP66 |
Frequently Asked Questions
Is it suitable for commercial and industrial projects?
Its supplied ratings make it an option for appropriately engineered commercial and industrial systems. A project engineer must verify continuous loads, motor-starting demands, battery capacity and the exact backup-output limits before selection.
How many solar panels can be connected?
Panel quantity depends on module wattage and the inverter's voltage, current and string limits. The 190kW maximum DC input figure alone is not enough to determine a safe string layout.
Does it support lithium batteries?
It supports compatible high-voltage lithium-ion systems within the supplied 200–800V range. Confirm the approved battery model, BMS communication protocol and charging limits; voltage matching alone does not establish compatibility.
Will production continue without interruption during an outage?
The supplied switching time is under 20ms, but this does not guarantee uninterrupted operation of every machine or control system. Backup performance depends on load tolerance, battery availability, output limits and installation configuration.
Project Design and Installation
Installation and commissioning require qualified professionals experienced in high-voltage solar and storage systems. Verify the manufacturer's exact datasheet, grid requirements, protection, earthing, cable sizing and battery compatibility.
IP66 is an enclosure-protection rating, not a guarantee of full output at every ambient temperature. Follow the manufacturer's placement, ventilation and temperature-derating requirements. Confirm standard warranty coverage and any optional extension in writing before purchase.
