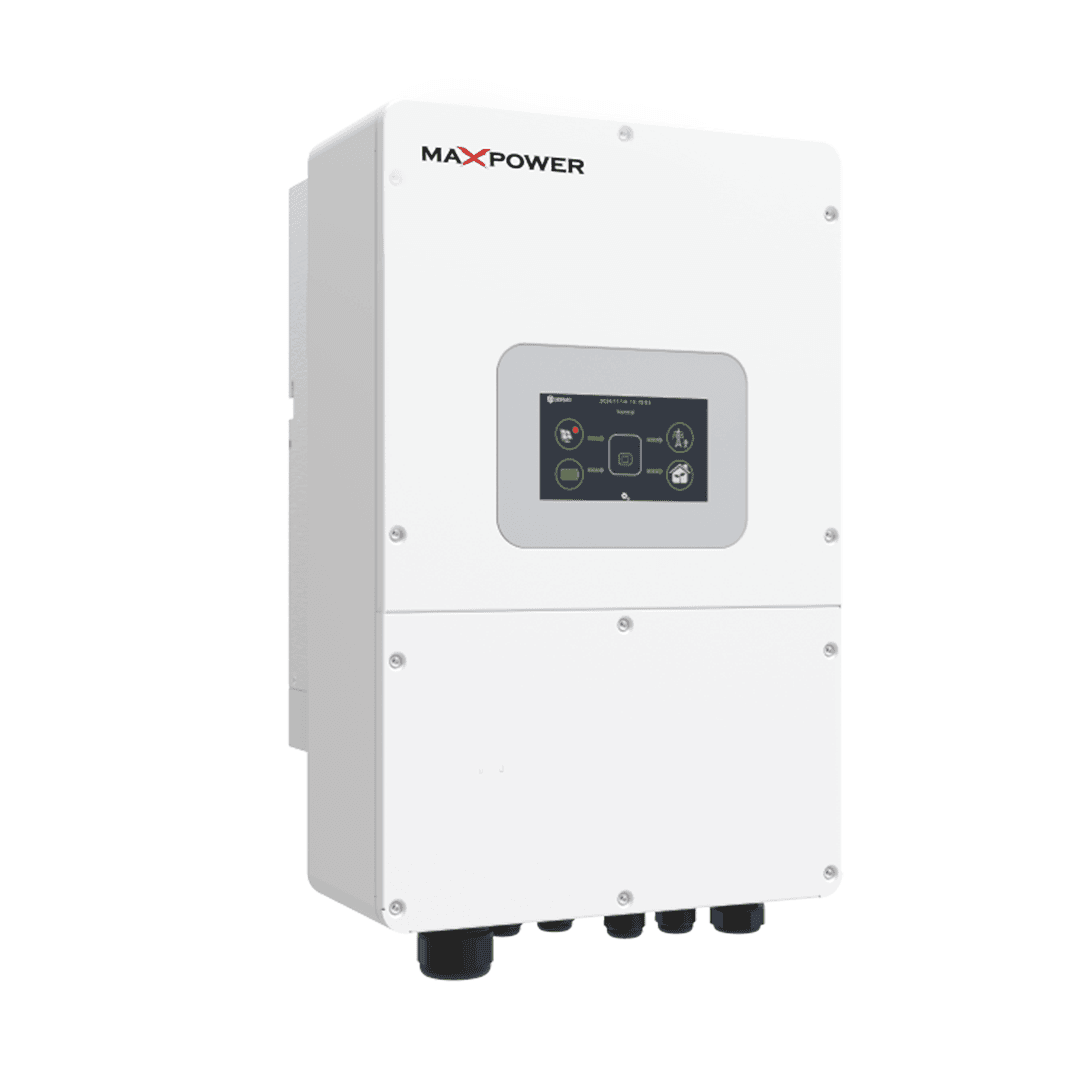

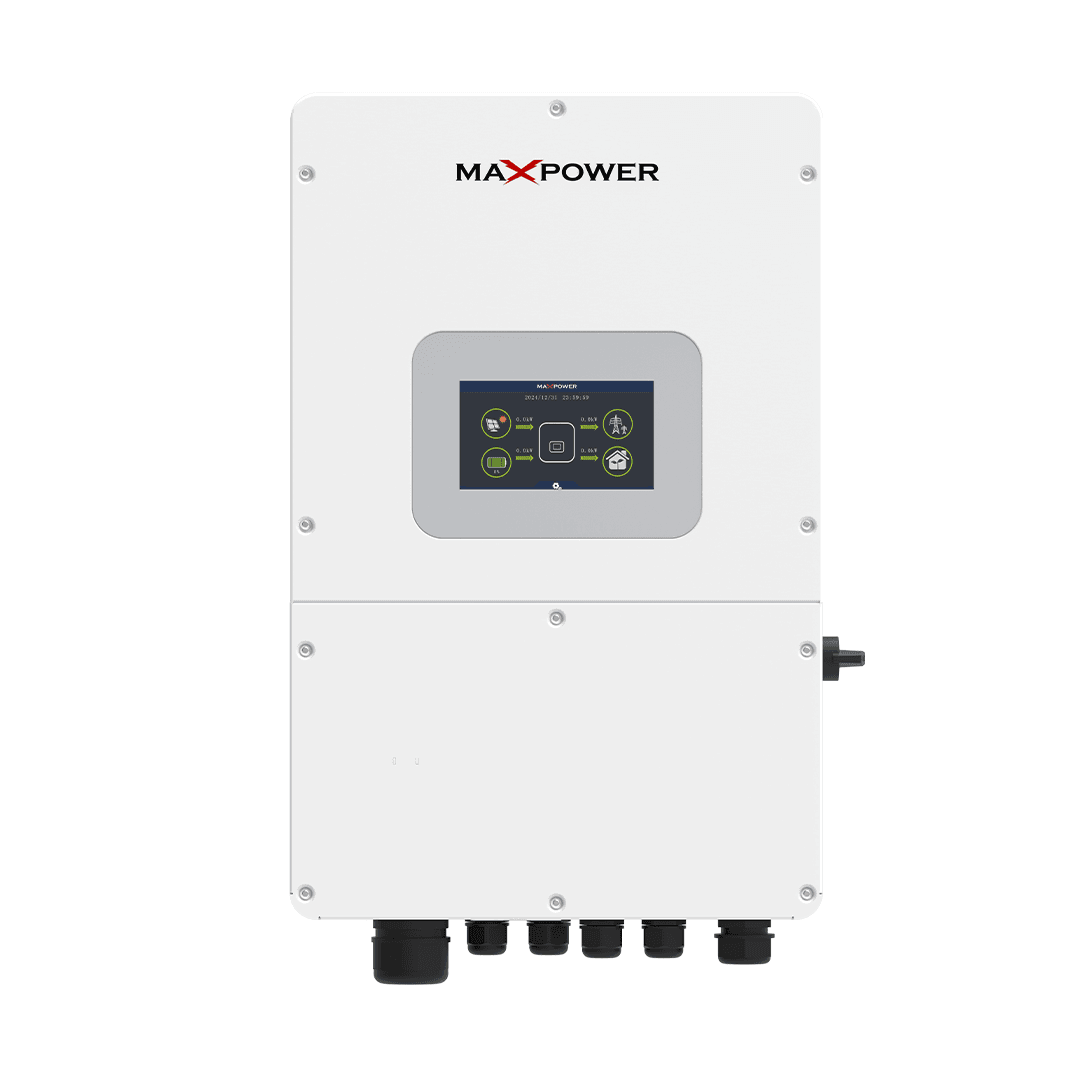

Max Power Voltas HYD-12K-H6 12kW Single-Phase Hybrid Inverter
Max Power Voltas HYD-12K-H6 12kW Single-Phase Hybrid Inverter
Couldn't load pickup availability
12kW Hybrid Solar and Battery Power
The Max Power Voltas HYD-12K-H6 is a single-phase hybrid inverter for appropriately designed residential and commercial energy systems. With 12kW output, dual-output capability and support for on-grid and off-grid configurations, it combines solar generation, compatible battery storage and utility interaction.
Its supplied maximum PV input capacity of 18,000W offers flexibility when planning a solar array. Solar input capacity is separate from continuous AC output, and final string design must comply with the exact model's voltage, current and string limits.
Key Features
- 12kW output power
- Single-phase hybrid configuration
- Dual-output capability
- On-grid and off-grid operating options
- Up to 18,000W PV input capacity
- Compatible lead-acid and lithium-ion batteries
- 40–60V battery operating range
- Up to 250A charge and discharge current
- 3-stage charging curve
- Optional external temperature sensor support
Technical Specifications
| Parameter | Value |
|---|---|
| Brand | Max Power |
| Product line | Voltas |
| Model | HYD-12K-H6 |
| Type | Single-phase hybrid inverter |
| Output power | 12kW |
| Maximum PV input power | 18,000W |
| Output arrangement | Dual output |
| Operating configurations | On-grid and off-grid |
| Battery voltage range | 40–60V |
| Maximum charge current | 250A |
| Maximum discharge current | 250A |
| Battery types | Compatible lead-acid and lithium-ion |
| Charging strategy | 3-stage charging curve |
| Temperature sensor | Optional external sensor |
Frequently Asked Questions
Is the HYD-12K-H6 a hybrid inverter?
Yes. It supports solar, compatible batteries and utility power in a correctly configured installation, with on-grid and off-grid operating options.
How many solar panels can be connected?
The supplied maximum PV input capacity is 18kW. Panel quantity and string layout also depend on open-circuit voltage, temperature effects, input-current limits and supported strings. Confirm the exact number of independent MPPT trackers in the manufacturer datasheet before finalising the design.
Does it support lithium and lead-acid batteries?
Compatible lithium-ion and lead-acid systems within the supplied 40–60V range are supported. Verify the approved battery model, BMS requirements, charging settings and battery current limits before connection. The inverter's 250A figure does not override a battery's lower limit.
Can it provide backup during load shedding?
Backup operation requires an appropriate configuration and available battery energy. Load demand, battery capacity and transfer performance determine suitability; uninterrupted operation for every appliance is not guaranteed.
Can it be used for net metering?
Grid-connected functionality does not itself establish approval. Confirm exact model eligibility, certifications and current local utility requirements before arranging grid export.
Installation and System Design
Have a qualified solar professional assess running and starting loads, dual-output allocation, PV string limits, battery sizing, cable sizing, protection and earthing. Verify the exact manufacturer's datasheet before commissioning. Optional external temperature sensors are not assumed to be included.
