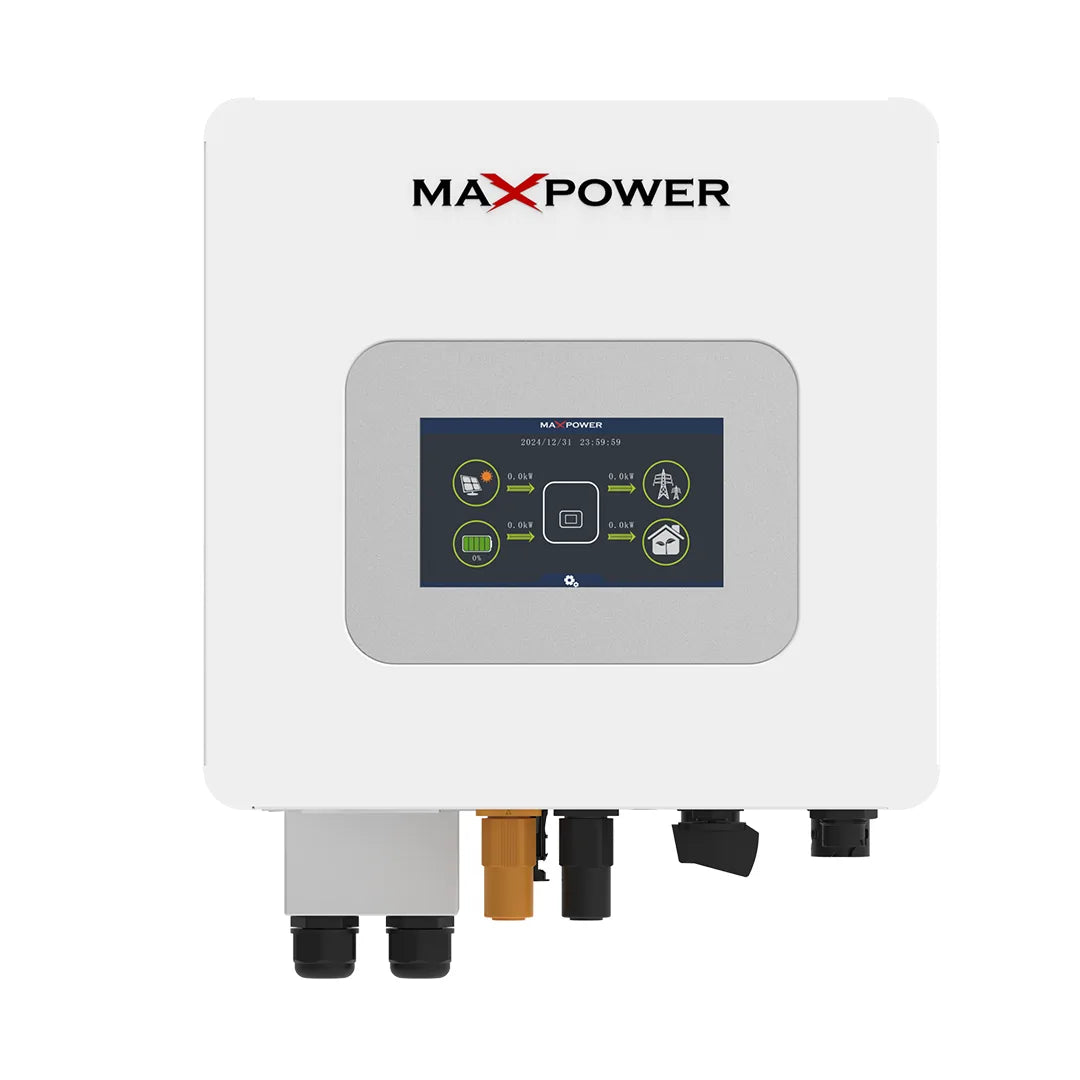

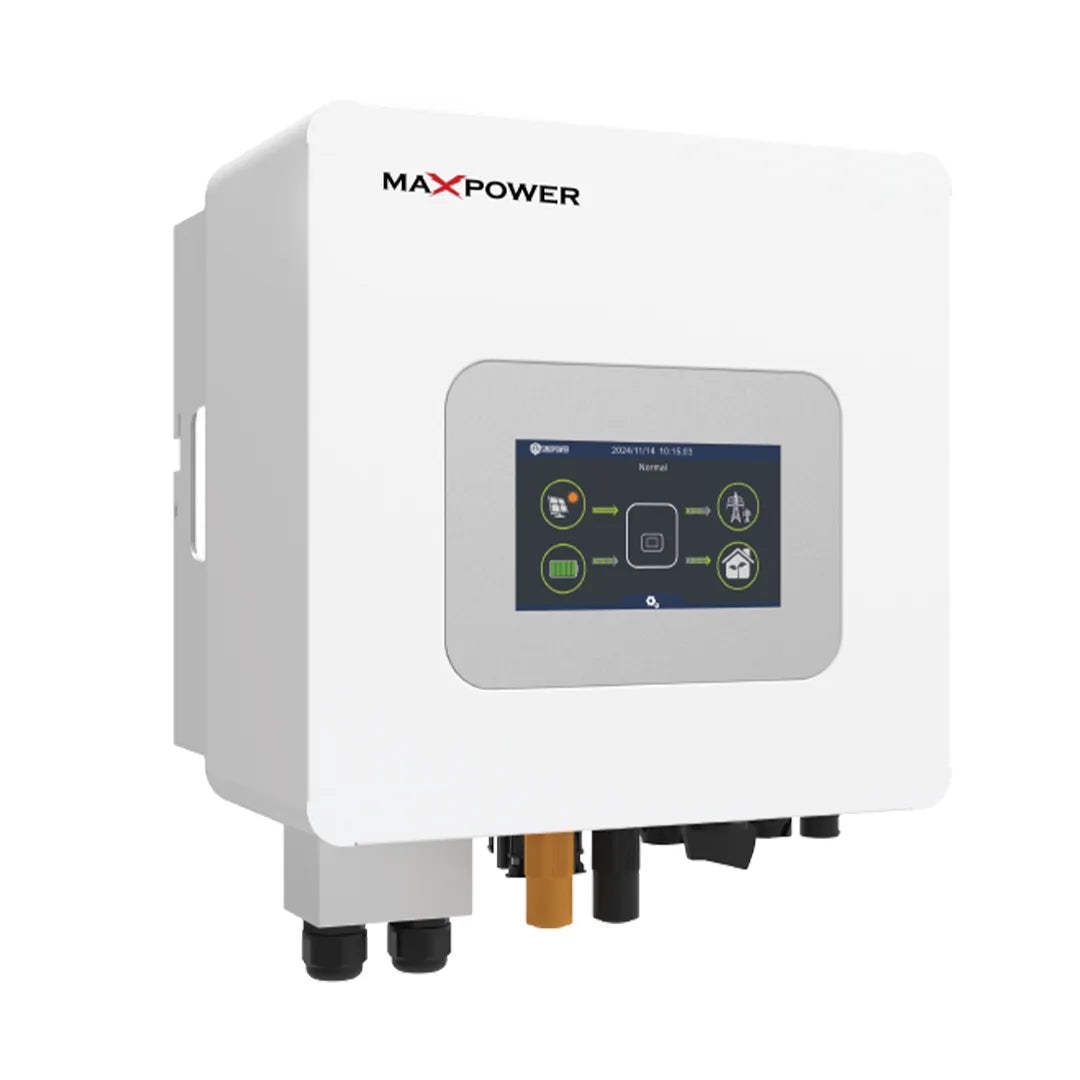

Max Power Voltas HYD-6K-H6 6kW Single-Phase Hybrid Inverter
Max Power Voltas HYD-6K-H6 6kW Single-Phase Hybrid Inverter
Couldn't load pickup availability
6kW Hybrid Solar and Battery Power
The Max Power Voltas HYD-6K-H6 is a single-phase hybrid inverter for appropriately designed home and commercial solar installations. With 6,000W rated AC output and two MPPT trackers, it combines solar-array management with compatible battery storage and utility interaction.
The supplied 40–60V battery operating range supports compatible lead-acid and lithium-ion systems. A 3-stage charging curve and optional external temperature sensor support allow charging to be configured to the requirements of the selected battery.
Key Features
- 6,000W rated AC output
- Single-phase hybrid configuration
- Two MPPT trackers
- 150–425V MPPT operating range
- 6,000W maximum DC input power, supplied specification
- 40–60V battery operating range
- Up to 140A charging and discharging current
- Compatible lead-acid and lithium-ion battery options
- 3-stage charging curve
- Optional external temperature sensor support
Technical Specifications
| Parameter | Value |
|---|---|
| Brand | Max Power |
| Product line | Voltas |
| Model | HYD-6K-H6 |
| Type | Single-phase hybrid inverter |
| Rated AC output | 6,000W |
| Peak output, supplied specification | 7,200W; duration not specified |
| Maximum DC input power, supplied specification | 6,000W |
| PV input voltage, supplied figure | 370V |
| PV operating range, supplied specification | 125–500V |
| MPPT voltage range | 150–425V |
| MPPT trackers | 2 |
| Battery voltage range | 40–60V |
| Maximum charging current | 140A |
| Maximum discharging current | 140A |
| Battery types | Compatible lead-acid and lithium-ion |
| Charging strategy | 3-stage charging curve |
| Temperature sensor | Optional external sensor |
Frequently Asked Questions
Is the HYD-6K-H6 a hybrid inverter?
Yes. It supports integration of solar panels, compatible batteries and utility power in an appropriately configured installation.
Can it run an air conditioner, refrigerator and other home appliances?
Suitable appliances may be connected within the inverter's running and starting-load limits. Have an installer assess total consumption, motor starting demand and peak-output duration; a 6kW rating does not guarantee every appliance combination will work.
Can it provide backup during load shedding?
Battery-backed operation depends on the system configuration, available battery energy and load demand. Backup duration and transfer performance should be checked for the intended appliances; uninterrupted power is not guaranteed.
Does it support net metering?
Grid interaction alone does not establish net-metering eligibility. Confirm the exact model's required approvals, certifications and current utility requirements before planning grid export.
Which batteries are suitable?
Use manufacturer-approved lead-acid or lithium-ion systems within the supplied 40–60V range. Confirm charging settings, battery current limits and BMS compatibility before connection.
Installation and Verification
Installation and commissioning require a qualified solar professional. Verify the exact manufacturer datasheet before finalising PV strings, voltage limits, input-current limits, battery sizing, protection and earthing. Optional temperature sensors are not assumed to be included.
