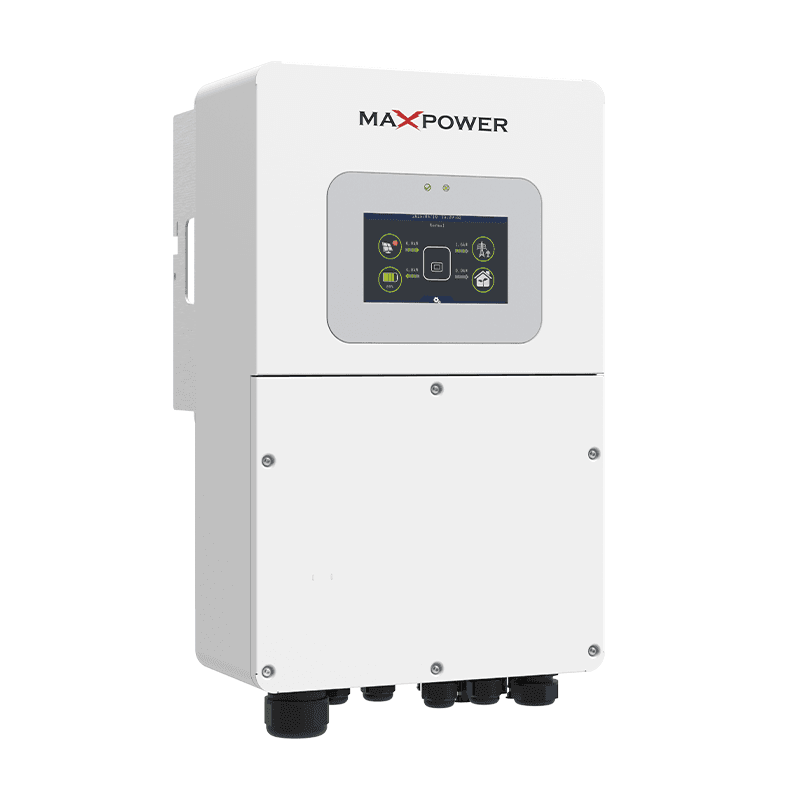

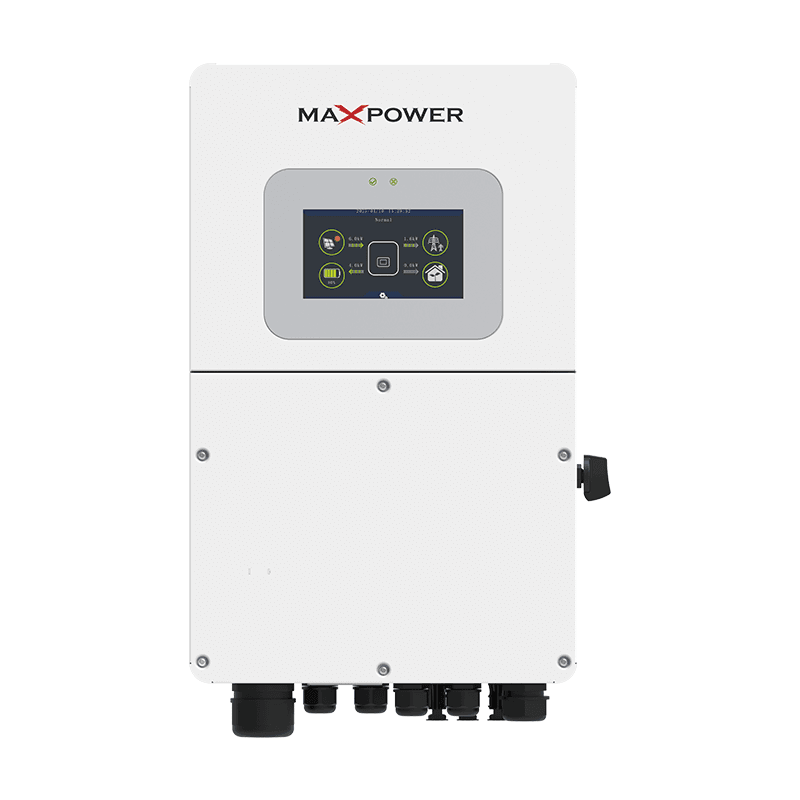

Max Power Voltas HYD-8K-H6 PRO 8kW Single-Phase Hybrid Inverter
Max Power Voltas HYD-8K-H6 PRO 8kW Single-Phase Hybrid Inverter
Couldn't load pickup availability
8kW Single-Phase Hybrid Solar and Battery Power
The Max Power Voltas HYD-8K-H6 PRO combines solar input, compatible battery storage and utility interaction for appropriately designed residential and commercial installations. Its 8,000W rated AC output and dual-output capability offer flexibility when planning essential and other connected loads.
On-grid and off-grid operation are supported with the appropriate wiring and configuration. During outages, backup availability depends on battery capacity, state of charge, load demand and the inverter's output limits.
Key Features
- 8kW rated AC output
- Single-phase hybrid configuration
- Dual-output capability
- On-grid and off-grid operating options
- Compatible lead-acid and lithium-ion batteries
- 40–60V battery operating range
- Up to 160A charge and discharge current
- 3-stage charging curve
- Optional external battery temperature sensor support
- Up to 12,000W DC input power
Technical Specifications
| Parameter | Value |
|---|---|
| Brand | Max Power |
| Product line | Voltas |
| Model | HYD-8K-H6 PRO |
| Inverter type | Single-phase hybrid |
| Rated AC output | 8,000W |
| Off-grid peak output, supplied specification | 9,000W for 10 seconds |
| Maximum DC input power | 12,000W |
| PV input voltage, supplied specification | 600V; verify voltage-limit classification in the exact datasheet |
| Startup voltage | 100V |
| Battery voltage range | 40–60V |
| Maximum charge current | 160A |
| Maximum discharge current | 160A |
| Battery types | Compatible lead-acid and lithium-ion |
| Charging strategy | 3-stage charging curve |
| Temperature sensor | Optional external sensor |
Frequently Asked Questions
Can it provide backup during load shedding?
It can supply compatible loads in a correctly configured battery-backed system. Backup duration depends on stored energy and consumption; uninterrupted operation for every appliance is not guaranteed.
Which batteries can be used?
Compatible lead-acid and lithium-ion systems within the 40–60V range are supported. Confirm the specific battery model, BMS requirements, charging settings and current limits before connection.
Can it be used for net metering?
Grid-connected operation does not itself establish net-metering approval. Confirm the exact inverter model's eligibility, required certifications and current utility requirements before planning an export connection.
How should the solar array be sized?
The supplied maximum DC input power is 12,000W. Final string sizing must also comply with input-current limits, voltage limits and cold-weather open-circuit voltage. Confirm the number of independent MPPT trackers and supported strings from the exact model datasheet before installation.
Installation and Safety
A qualified solar professional should design and commission the installation, including source connections, load allocation, protection and earthing. Optional temperature sensors are not assumed to be included. Verify the manufacturer's exact specifications, battery compatibility and operating limits before purchase.
