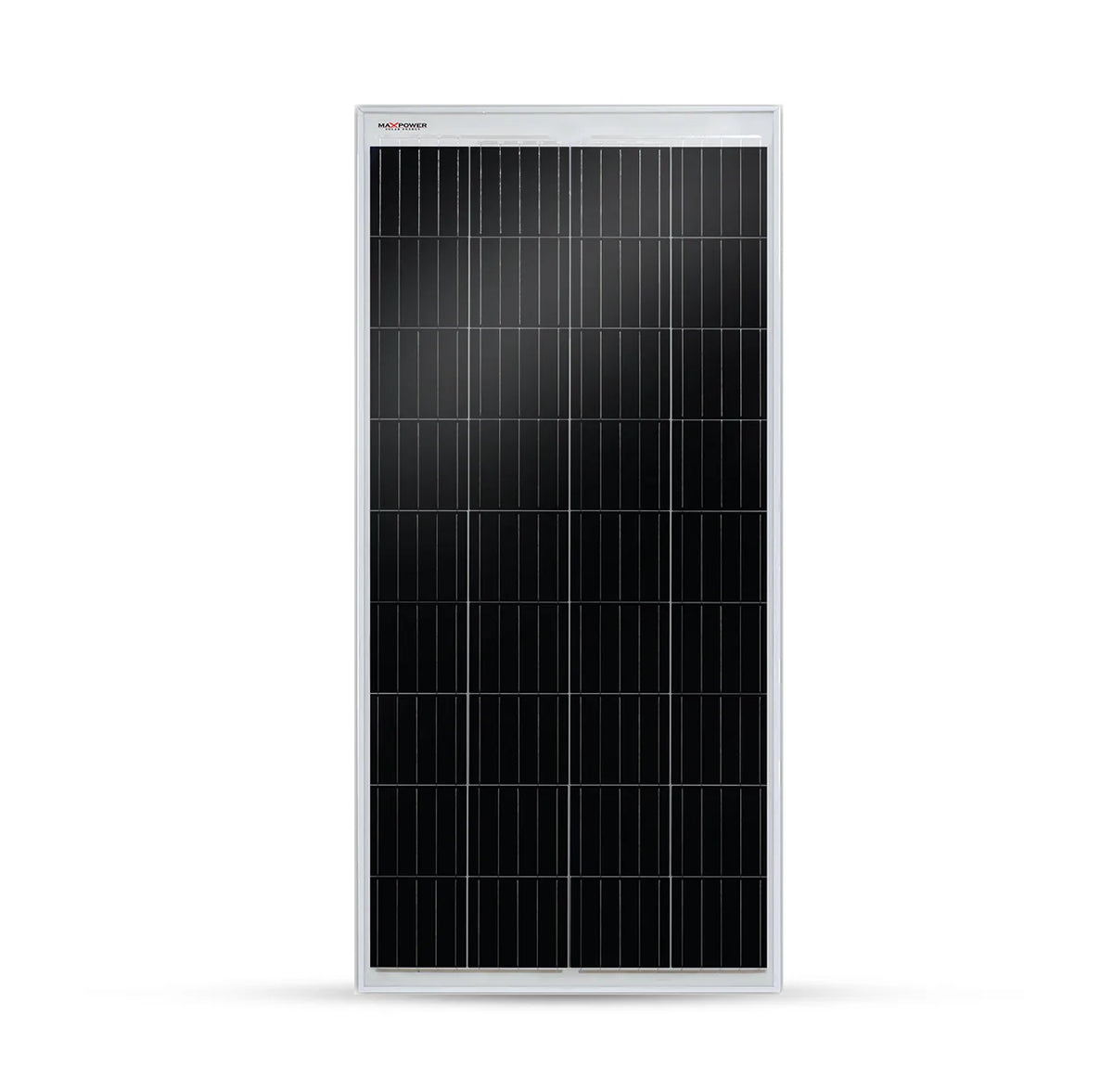

MP 220W Bifacial Solar Panel with Anodized Aluminum Frame
MP 220W Bifacial Solar Panel with Anodized Aluminum Frame
Couldn't load pickup availability
220W Bifacial Solar Module
The MP 220W Bifacial Solar Panel is a photovoltaic module for appropriately designed solar installations. Its 1,505 × 678 × 30 mm dimensions help installers plan mounting space, while the anodized aluminum frame provides a framed structure for installation.
The bifacial design can use light reaching both sides of the module. Rear-side contribution depends on reflected light, mounting clearance and site conditions; no fixed additional output is guaranteed.
Key Features
- 220W nominal output for the listed model
- Bifacial photovoltaic design
- 20.0V voltage at maximum power
- 1000V DC maximum system voltage
- Anodized aluminum frame
- Dimensions: 1,505 × 678 × 30 mm
Technical Specifications
| Parameter | Value |
|---|---|
| Product designation | MP 220W |
| Module type | Bifacial solar panel |
| Nominal output, listed model | 220W |
| Voltage at Pmax | 20.0V |
| Maximum system voltage | 1000V DC |
| NOCT | 45 ± 2°C |
| Dimensions | 1,505 × 678 × 30 mm |
| Frame | Anodized aluminum |
Installation and Compatibility
Have a qualified solar installer verify the module label and exact datasheet before selecting the inverter or charge controller, string arrangement, wiring and mounting system. The 1000V DC maximum system voltage is a system limit, not the operating voltage of a single panel.
Actual power output depends on sunlight, temperature, shading and installation conditions. Keep the rear surface suitably exposed where the mounting design allows use of reflected light.
