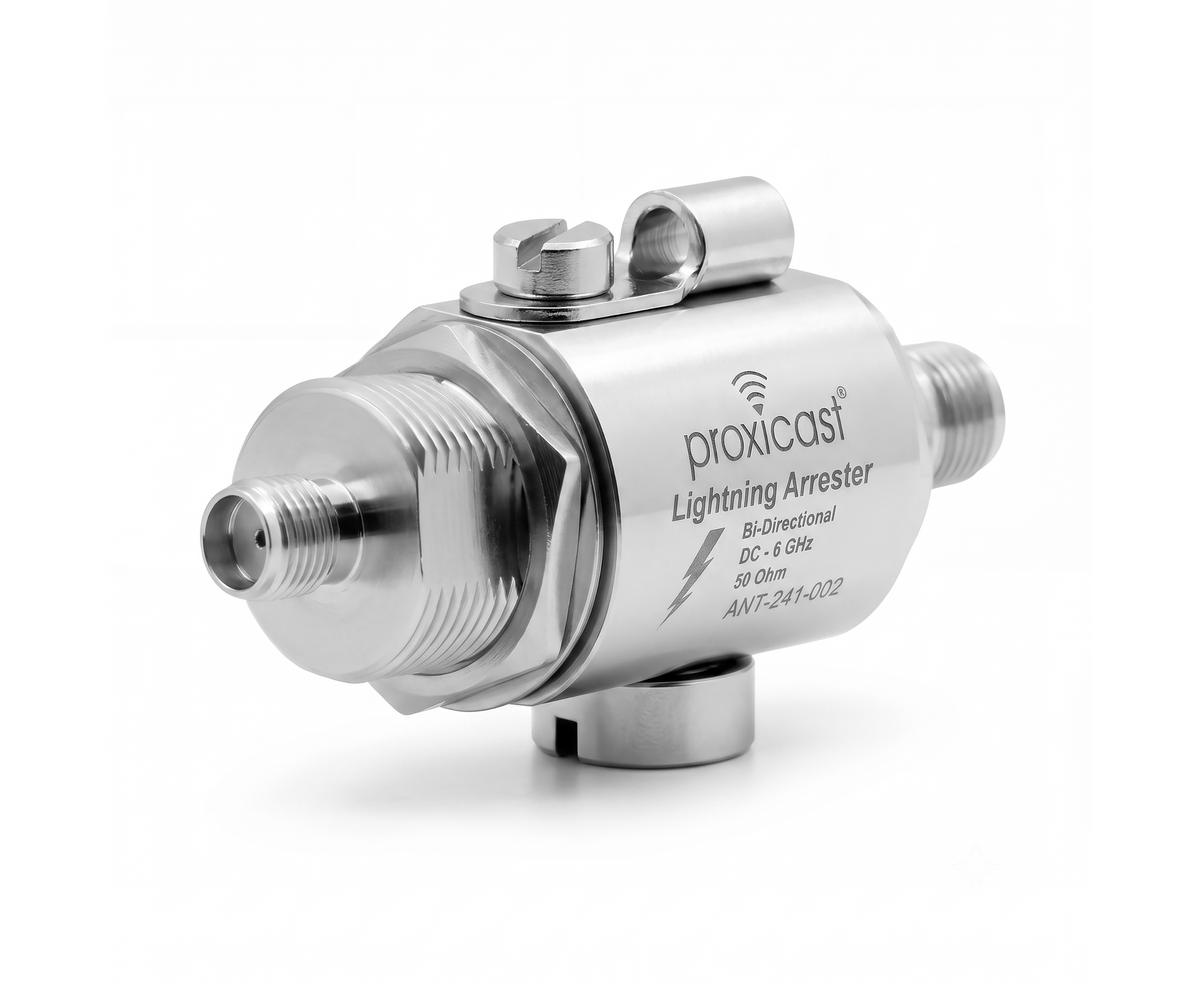

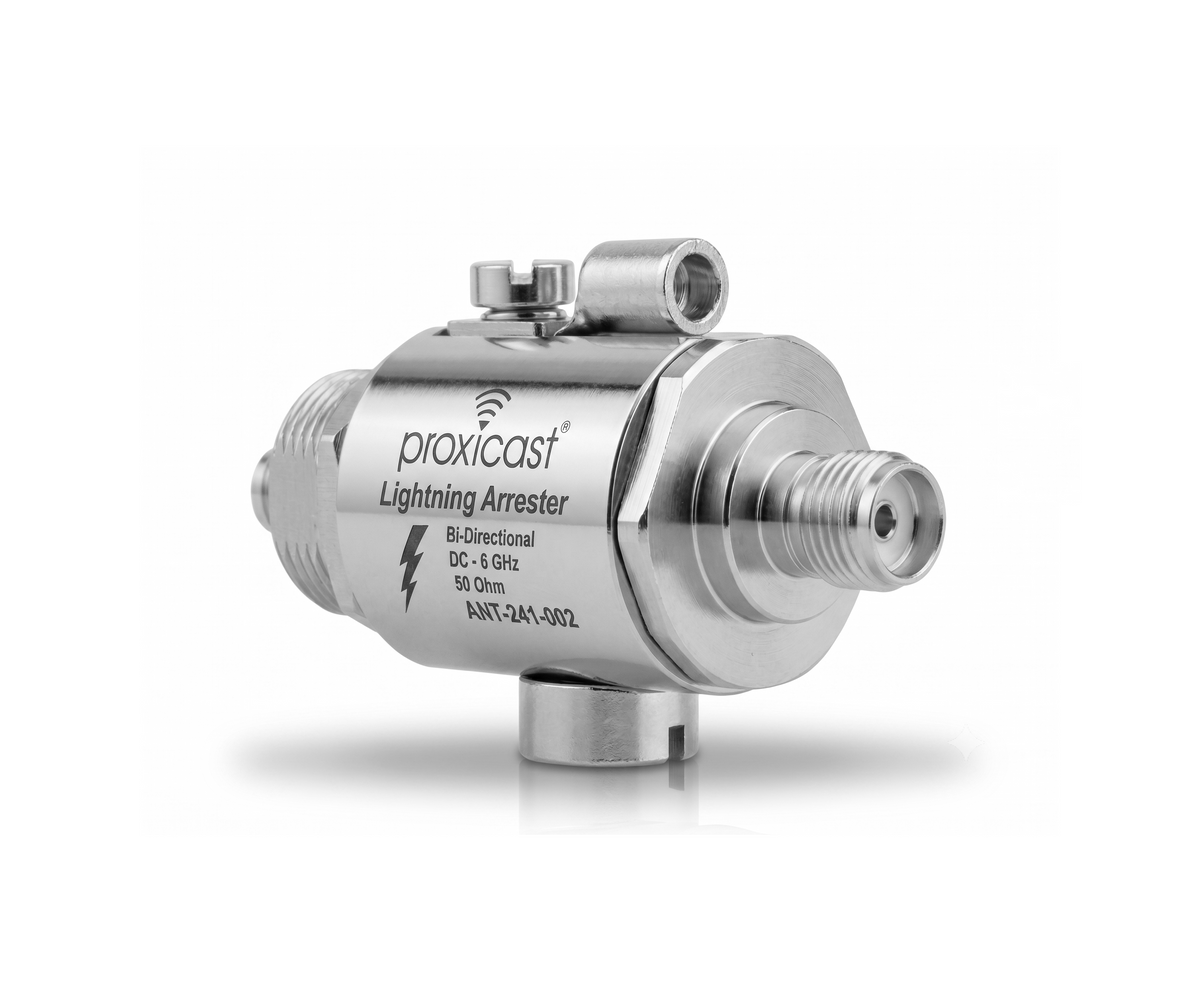

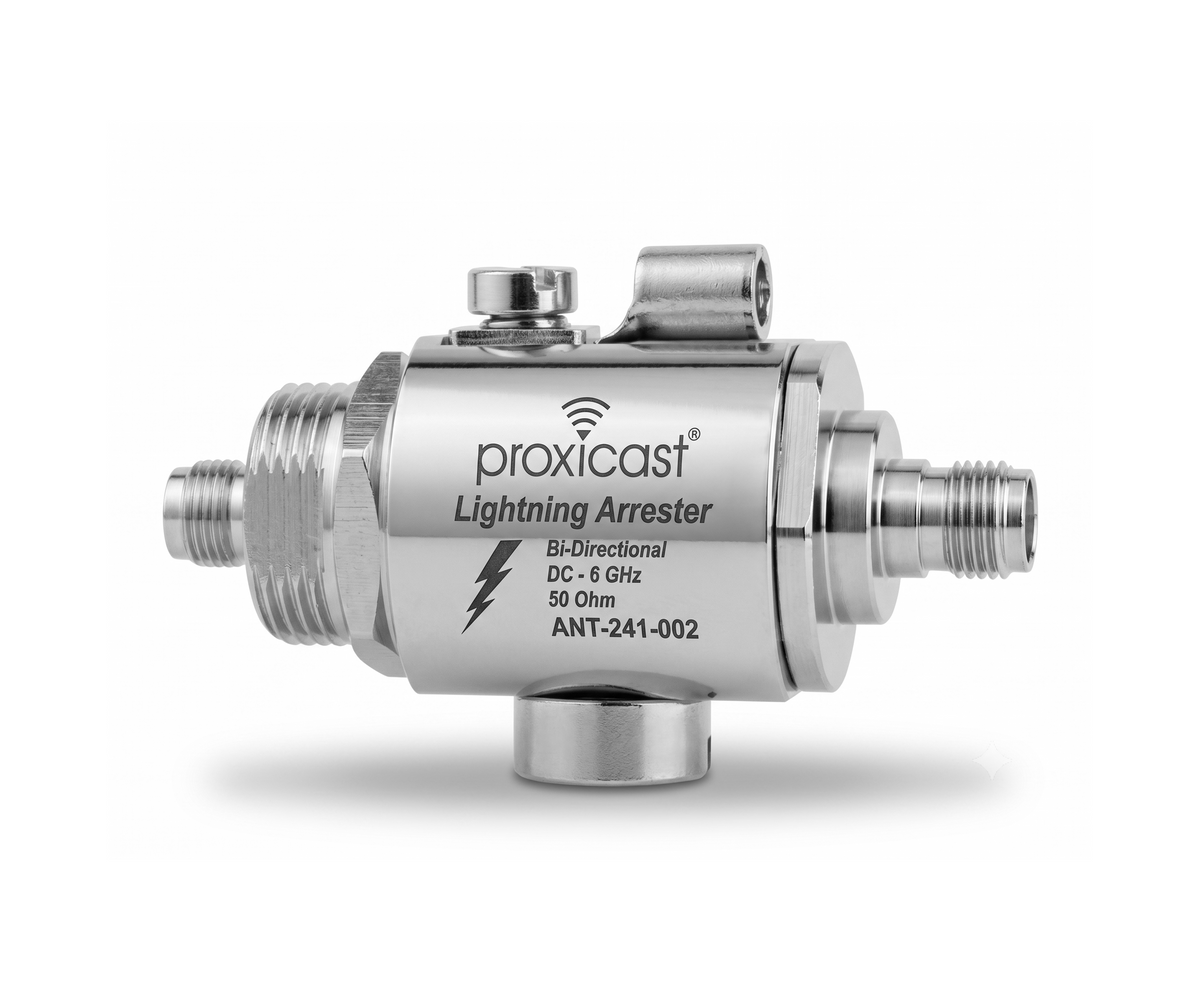

Proxicast Coaxial Lightning Arrester DC–6 GHz | SMA Female to Female

Add coaxial surge protection to your compatible outdoor antenna installation with the Proxicast ANT-241-002 lightning arrester. Featuring SMA-female connections on both ends, a DC–6 GHz frequency range, and 50-ohm impedance, it is intended for inline installation in compatible antenna cable systems.

Key Features

• DC–6 GHz frequency range.
• SMA-female to SMA-female connections.
• 50-ohm impedance for compatible RF systems.
• Bi-directional design, as marked on the product.
• Grounding connection for integration into a properly grounded installation.

Specifications

• Brand: Proxicast.
• Model: ANT-241-002.
• Type: Coaxial antenna lightning arrester.
• Frequency Range: DC to 6 GHz.
• Connectors: SMA Female / SMA Female.
• Impedance: 50 ohms.
• Direction: Bi-directional.

Applications

• Compatible 4G, LTE, and sub-6 GHz 5G antenna installations operating within the specified range.
• 900 MHz and LoRa antenna systems with matching connectors and impedance.
• Compatible amateur radio and other outdoor antenna systems.

Installation & Safety

Verify connector type, operating frequency, impedance, and the manufacturer's power and DC requirements before installation. Effective surge protection requires correct grounding and bonding. This device does not guarantee protection from direct lightning strikes. Follow the manufacturer's installation instructions and use suitable weather protection for exposed connections.
